Android 实现圆盘占比图

释放双眼,带上耳机,听听看~!

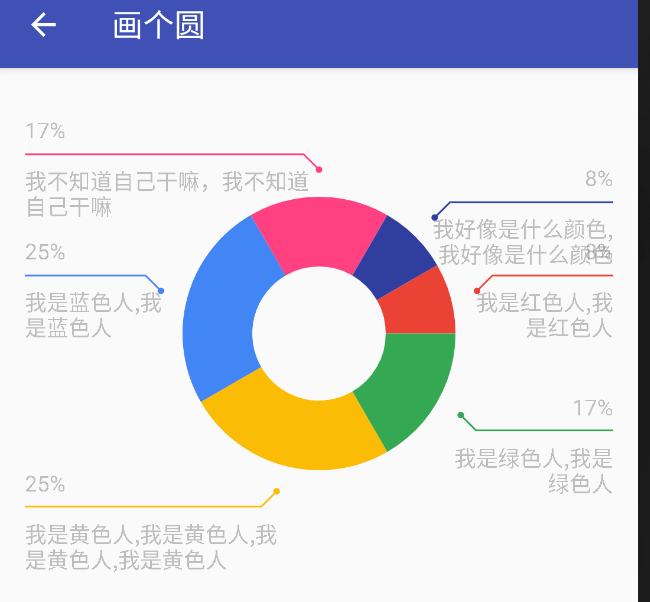

先上个图,代码不多,就一个类

package mo.wall.org.circlepercent;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.RectF;
import android.os.Build;
import android.support.annotation.Nullable;
import android.support.annotation.RequiresApi;
import android.text.Layout;
import android.text.StaticLayout;
import android.text.TextPaint;
import android.util.AttributeSet;
import android.view.View;
import java.text.DecimalFormat;
import java.util.List;
import mo.wall.org.R;
/**
* <p>
* Copyright (C), 2018-2019
* Author: ziqimo
* Date: 2019/8/9 10:39 AM
* Description: ${DESCRIPTION}
* History:
* <author> <time> <version> <desc>
* 作者姓名 修改时间 版本号 描述
*/
public class CirclePercentView extends View {
private final static String TAG = CirclePercentView.class.getSimpleName();
/**
* 总数
*/
private float totalNum;
private List<CirclePercentData> circlePercentDatas;
/**
* 圆的位置
*/
private RectF rectF;
private Paint circlePaint;//当前画笔
private Paint pointPaint;//点
private Paint linePaint;//线
private TextPaint textPaint;//文字
DecimalFormat df = new DecimalFormat("0%");
private int startY;
private int startX;
private ValueAnimator circlePercentAnimator = null;
private ValueAnimator circlePercentPointAnimator = null;
private ValueAnimator circlePercentLineAnimator = null;
//当前位置
private int circlePercentPos;
private int circlePercentPointPos;
private int circlePercentLinePos;
public CirclePercentView(Context context) {
super(context);
init();
}
public CirclePercentView(Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
init();
}
public CirclePercentView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
init();
}
@RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
public CirclePercentView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
super(context, attrs, defStyleAttr, defStyleRes);
init();
}
@Override
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
super.onLayout(changed, left, top, right, bottom);
startX = (getWidth() - getHeight() / 2) / 2 + dip2px(getContext(), 20);
startY = getHeight() / 4 + dip2px(getContext(), 20);
//设置画圆的空间
if (rectF == null) {
rectF = new RectF(startX, startY, getWidth() - startX, getHeight() - startY);
}
}
private void init() {
circlePaint = new Paint();
circlePaint.setStyle(Paint.Style.STROKE);
circlePaint.setAntiAlias(true);
circlePaint.setStrokeWidth(dip2px(getContext(), 45));
pointPaint = new Paint();
pointPaint.setColor(getResources().getColor(R.color.mask_color));
pointPaint.setStrokeWidth(dip2px(getContext(), 2));
pointPaint.setStyle(Paint.Style.STROKE);
pointPaint.setAntiAlias(true);
linePaint = new Paint();
linePaint.setColor(getResources().getColor(R.color.mask_color));
linePaint.setStrokeWidth(dip2px(getContext(), 1));
linePaint.setStyle(Paint.Style.STROKE);
linePaint.setAntiAlias(true);
textPaint = new TextPaint();
textPaint.setColor(getResources().getColor(R.color.mask_color));
textPaint.setTextSize(sp2px(getContext(), 14));
textPaint.setStrokeWidth(dip2px(getContext(), 2));
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
//        canvas.drawRect(rectF, pointPaint);
drawCirclePercent(canvas);
drawCirclePercentPoint(canvas);
drawCirclePercentLine(canvas);
}
/**
* 绘制圆的占比
*
* @param canvas
*/
private void drawCirclePercent(Canvas canvas) {
//改为作为成员变量
float startAngle = -30;
//遍历画占比
for (int i = 0; i < circlePercentPos; i++) {
//        int i = pos;
CirclePercentData circlePercentData = circlePercentDatas.get(i);
float v = circlePercentData.num / totalNum * 360;
circlePaint.setColor(circlePercentData.resIdColor);
//画弧度
canvas.drawArc(rectF,
startAngle,
v,
false,
circlePaint);
//当前位置和
startAngle = startAngle + v;
}
}
/**
* 这是画点
*
* @param canvas
*/
private void drawCirclePercentPoint(Canvas canvas) {
//改为作为成员变量
float startAngle = -30;
float preAngle = -30;
float preV = 0f;
int centerX = getWidth() / 2;
int centerY = getHeight() / 2;
float radius = (getWidth() - startX) / 2 - dip2px(getContext(), 30);
//遍历画占比
for (int i = 0; i < circlePercentPointPos; i++) {
//        int i = pos;
CirclePercentData circlePercentData = circlePercentDatas.get(i);
float v = circlePercentData.num / totalNum * 360;
//获取前一个
if (i > 0) {
CirclePercentData preCirclePercentData = circlePercentDatas.get(i - 1);
preV = preCirclePercentData.num / totalNum * 360;
}
//获取前一个位置和
preAngle = preAngle + preV;
//当前位置和
startAngle = startAngle + v;
//获取弧度中心位置
float halfAngle = (startAngle - preAngle) / 2 + preAngle;
//Log.i(TAG, "onDraw.preAngle>>" + preAngle + ",startAngle>>" + startAngle + ",halfAngle>>" + halfAngle);
//https://www.jianshu.com/p/754b356239c1
//https://blog.csdn.net/liaoyi_/article/details/61914388
// 弧度=度×π/180
//Math.toRadians()
float x = centerX + (float) (Math.cos(halfAngle * Math.PI / 180) * radius);
float y = centerY + (float) (Math.sin(halfAngle * Math.PI / 180) * radius);
//Log.i(TAG, "onDraw.x>>" + x + ",y>>" + y);
//设置颜色
pointPaint.setColor(circlePercentData.resIdColor);
//画出点的位置
canvas.drawCircle(x, y, dip2px(getContext(), 1), pointPaint);
}
}
/**
* 最后画线跟文字
*
* @param canvas
*/
private void drawCirclePercentLine(Canvas canvas) {
//改为作为成员变量
float startAngle = -30;
float preAngle = -30;
float preV = 0f;
int centerX = getWidth() / 2;
int centerY = getHeight() / 2;
float radius = (getWidth() - startX) / 2 - dip2px(getContext(), 30);
//遍历画占比
for (int i = 0; i < circlePercentLinePos; i++) {
//        int i = pos;
CirclePercentData circlePercentData = circlePercentDatas.get(i);
float v = circlePercentData.num / totalNum * 360;
//获取前一个
if (i > 0) {
CirclePercentData preCirclePercentData = circlePercentDatas.get(i - 1);
preV = preCirclePercentData.num / totalNum * 360;
}
//获取前一个位置和
preAngle = preAngle + preV;
//当前位置和
startAngle = startAngle + v;
//获取弧度中心位置
float halfAngle = (startAngle - preAngle) / 2 + preAngle;
//Log.i(TAG, "onDraw.preAngle>>" + preAngle + ",startAngle>>" + startAngle + ",halfAngle>>" + halfAngle);
//https://www.jianshu.com/p/754b356239c1
//https://blog.csdn.net/liaoyi_/article/details/61914388
// 弧度=度×π/180
//Math.toRadians()
float x = centerX + (float) (Math.cos(halfAngle * Math.PI / 180) * radius);
float y = centerY + (float) (Math.sin(halfAngle * Math.PI / 180) * radius);
//Log.i(TAG, "onDraw.x>>" + x + ",y>>" + y);
//下面是画线的处理
//设置颜色
linePaint.setColor(circlePercentData.resIdColor);
float leanX = 0;
float leanY = 0;
float offsetX = 0;
float offsetY = 0;
Path path = new Path();
path.moveTo(x, y);
if (x > centerX) {
//控制位置的对齐方向
textPaint.setTextAlign(Paint.Align.RIGHT);
//右边画线
if (y > centerY) {
//设置一个倾向角度
leanX = x + dip2px(getContext(), 10);
leanY = y + dip2px(getContext(), 10);
offsetX = getWidth() - dip2px(getContext(), 16);
offsetY = y + dip2px(getContext(), 10);
//设置文字
//百分比
canvas.drawText(
df.format(circlePercentData.num / totalNum),
offsetX,
y,
textPaint);
//标题
//                    canvas.drawText(
//                            circlePercentData.name,
//                            offsetX,
//                            y + dip2px(getContext(), 30),
//                            textPaint);
//保存图层
canvas.save();
canvas.translate(offsetX, y + dip2px(getContext(), 20));
//实现文字换行显示
StaticLayout myStaticLayout
= new StaticLayout(circlePercentData.name,
textPaint,
(int) (getWidth() - leanX),
Layout.Alignment.ALIGN_NORMAL,
1.0f,
0.0f,
false);
myStaticLayout.draw(canvas);
//恢复图层
canvas.restore();
} else {
//设置一个倾向角度
leanX = x + dip2px(getContext(), 10);
leanY = y - dip2px(getContext(), 10);
offsetX = getWidth() - dip2px(getContext(), 16);
offsetY = y - dip2px(getContext(), 10);
//设置文字
//百分比
canvas.drawText(
df.format(circlePercentData.num / totalNum),
offsetX,
y - dip2px(getContext(), 20),
textPaint);
//标题
//                    canvas.drawText(
//                            circlePercentData.name,
//                            offsetX,
//                            y + dip2px(getContext(), 10),
//                            textPaint);
//保存图层
canvas.save();
canvas.translate(offsetX, y);
//实现文字换行显示
StaticLayout myStaticLayout
= new StaticLayout(circlePercentData.name,
textPaint,
(int) (getWidth() - leanX),
Layout.Alignment.ALIGN_NORMAL,
1.0f,
0.0f,
false);
myStaticLayout.draw(canvas);
//恢复图层
canvas.restore();
}
} else {
textPaint.setTextAlign(Paint.Align.LEFT);
//左边画线
if (y > centerY) {
//设置一个倾向角度
leanX = x - dip2px(getContext(), 10);
leanY = y + dip2px(getContext(), 10);
offsetX = 0 + dip2px(getContext(), 16);
offsetY = y + dip2px(getContext(), 10);
//设置文字
//百分比
canvas.drawText(
df.format(circlePercentData.num / totalNum),
offsetX,
y,
textPaint);
//标题
//                    canvas.drawText(
//                            circlePercentData.name,
//                            offsetX,
//                            y + dip2px(getContext(), 30),
//                            textPaint);
//保存图层
canvas.save();
canvas.translate(offsetX, y + dip2px(getContext(), 20));
//实现文字换行显示
StaticLayout myStaticLayout
= new StaticLayout(circlePercentData.name,
textPaint,
(int) leanX,
Layout.Alignment.ALIGN_NORMAL,
1.0f,
0.0f,
false);
myStaticLayout.draw(canvas);
//恢复图层
canvas.restore();
} else {
//设置一个倾向角度
leanX = x - dip2px(getContext(), 10);
leanY = y - dip2px(getContext(), 10);
offsetX = 0 + dip2px(getContext(), 16);
offsetY = y - dip2px(getContext(), 10);
//设置文字
//百分比
canvas.drawText(
df.format(circlePercentData.num / totalNum),
offsetX,
y - dip2px(getContext(), 20),
textPaint);
//标题
//                    canvas.drawText(
//                            circlePercentData.name,
//                            offsetX,
//                            y + dip2px(getContext(), 10),
//                            textPaint);
//保存图层
canvas.save();
canvas.translate(offsetX, y);
//实现文字换行显示
StaticLayout myStaticLayout
= new StaticLayout(circlePercentData.name,
textPaint,
(int) leanX,
Layout.Alignment.ALIGN_NORMAL,
1.0f,
0.0f,
false);
myStaticLayout.draw(canvas);
//恢复图层
canvas.restore();
}
}
path.lineTo(leanX, leanY);
path.lineTo(offsetX, offsetY);
canvas.drawPath(path, linePaint);
}
}
public CirclePercentView setTotalNum(int totalNum) {
this.totalNum = totalNum;
return this;
}
public CirclePercentView setCirclePercentDatas(List<CirclePercentData> circlePercentDatas) {
this.circlePercentDatas = circlePercentDatas;
return this;
}
public void start() {
cancel();
if (circlePercentDatas.isEmpty()) {
return;
}
circlePercentAnimator = ValueAnimator.ofInt(0, circlePercentDatas.size());
circlePercentAnimator.setDuration(circlePercentDatas.size() * 100);
circlePercentAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
Object animatedValue = animation.getAnimatedValue();
circlePercentPos = (int) animatedValue;
postInvalidate();
if (circlePercentPos == circlePercentDatas.size()) {
circlePercentPointAnimator.start();
}
}
});
circlePercentPointAnimator = ValueAnimator.ofInt(0, circlePercentDatas.size());
circlePercentPointAnimator.setDuration(circlePercentDatas.size() * 100);
circlePercentPointAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
Object animatedValue = animation.getAnimatedValue();
circlePercentPointPos = (int) animatedValue;
postInvalidate();
if (circlePercentPointPos == circlePercentDatas.size()) {
circlePercentLineAnimator.start();
}
}
});
circlePercentLineAnimator = ValueAnimator.ofInt(0, circlePercentDatas.size());
circlePercentLineAnimator.setDuration(circlePercentDatas.size() * 100);
circlePercentLineAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
Object animatedValue = animation.getAnimatedValue();
circlePercentLinePos = (int) animatedValue;
postInvalidate();
}
});
circlePercentAnimator.start();
}
public void onDestroy() {
cancel();
circlePercentPos = 0;
circlePercentPointPos = 0;
circlePercentLinePos = 0;
rectF = null;
circlePaint = null;//当前画笔
pointPaint = null;
linePaint = null;//线
textPaint = null;//文字
if (circlePercentDatas != null) {
circlePercentDatas.clear();
}
circlePercentDatas = null;
}
public void cancel() {
if (circlePercentAnimator != null) {
circlePercentAnimator.cancel();
circlePercentAnimator = null;
}
if (circlePercentPointAnimator != null) {
circlePercentPointAnimator.cancel();
circlePercentPointAnimator = null;
}
if (circlePercentLineAnimator != null) {
circlePercentLineAnimator.cancel();
circlePercentLineAnimator = null;
}
}
public static class CirclePercentData {
public float num;//当前的数量
public String name;//科目类型
public int resIdColor;//圆盘的颜色
public CirclePercentData(int num, String name, int resIdColor) {
this.num = num;
this.name = name;
this.resIdColor = resIdColor;
}
}
/**
* 提供构建方法创建
*
* @param num
* @param name
* @param resIdColor
* @return
*/
public static CirclePercentData createCirclePercentData(int num, String name, int resIdColor) {
CirclePercentData circlePercentData = new CirclePercentData(num, name, resIdColor);
return circlePercentData;
}
/**
* 根据手机的分辨率从 dp 的单位 转成为 px(像素)
*/
public static int dip2px(Context context, float dpValue) {
final float scale = context.getResources().getDisplayMetrics().density;
return (int) (dpValue * scale + 0.5f);
}
public static int sp2px(Context context, float spValue) {
final float fontScale = context.getResources().getDisplayMetrics().scaledDensity;
return (int) (spValue * fontScale + 0.5f);
}
}

用法也很简单几行代码

mCpv = findViewById<CirclePercentView>(R.id.cpv)
mCpv.setTotalNum(12)
.setCirclePercentDatas(
Arrays.asList(
CirclePercentView.createCirclePercentData(1, "我是红色人,我是红色人", resources.getColor(R.color.google_red)),
CirclePercentView.createCirclePercentData(2, "我是绿色人,我是绿色人", resources.getColor(R.color.google_green)),
CirclePercentView.createCirclePercentData(3, "我是黄色人,我是黄色人,我是黄色人,我是黄色人", resources.getColor(R.color.google_yellow)),
CirclePercentView.createCirclePercentData(3, "我是蓝色人,我是蓝色人", resources.getColor(R.color.google_blue)),
CirclePercentView.createCirclePercentData(2, "我不知道自己干嘛,我不知道自己干嘛", resources.getColor(R.color.colorAccent)),
CirclePercentView.createCirclePercentData(1, "我好像是什么颜色,我好像是什么颜色", resources.getColor(R.color.colorPrimaryDark))))
.start()

最后代码地址在https://github.com/moz1q1/WalleLibrary

人已赞赏
Android文章

Android 视图动画、属性动画的区别

2020-1-5 17:17:03

Android文章

Android开发ProgressBar使用详解

2020-1-6 4:22:15

个人中心
购物车
优惠劵
今日签到
有新私信 私信列表
有新消息 消息中心
搜索
