Android 实现圆柱自定义view

释放双眼,带上耳机,听听看~!

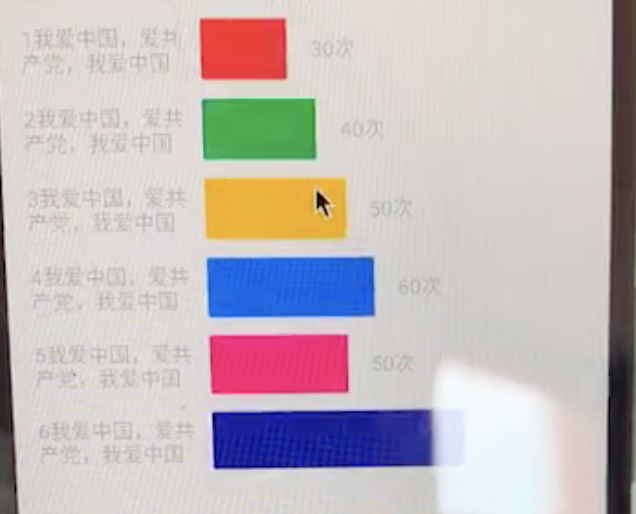

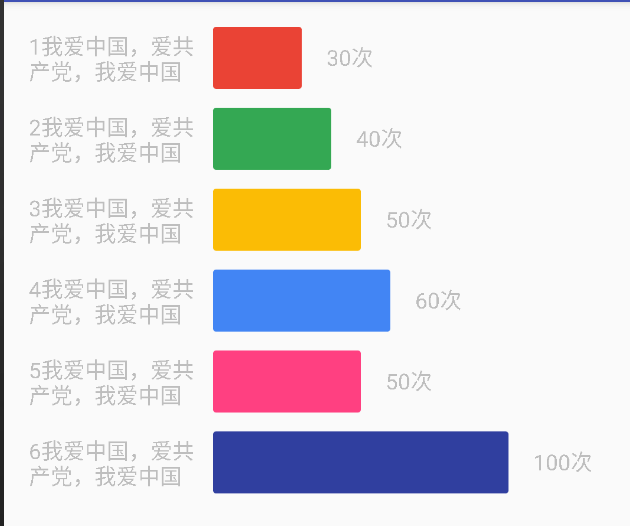

来上来一个图,gif懒得搞,就静态图片了





然后代码

package mo.wall.org.circlepercent;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.os.Build;
import android.support.annotation.Nullable;
import android.support.annotation.RequiresApi;
import android.text.Layout;
import android.text.StaticLayout;
import android.text.TextPaint;
import android.util.AttributeSet;
import android.view.View;
import java.util.List;
import mo.wall.org.R;
/**
* 参考
* <p>
* https://blog.csdn.net/zhcswlp0625/article/details/70342029
* <p>
* Copyright (C), 2018-2019
* Author: ziqimo
* Date: 2019/8/10 1:17 PM
* Description: ${DESCRIPTION}
* History:
* <author> <time> <version> <desc>
* 作者姓名 修改时间 版本号 描述
*/
public class ColumnarView extends View {
private final static String TAG = ColumnarView.class.getSimpleName();
private float totalCount;
private List<ColumnarData> columnarDatas;
private TextPaint textPaint;//文字画笔
private Paint columnarPaint;//柱状画笔
private int mWidth;
private int mHeight;
private int[] currentBarProgress;
private int[] currentCount;
public ColumnarView(Context context) {
super(context);
init();
}
public ColumnarView(Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
init();
}
public ColumnarView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
init();
}
@RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
public ColumnarView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
super(context, attrs, defStyleAttr, defStyleRes);
init();
}
private void init() {
columnarPaint = new Paint();
columnarPaint.setStyle(Paint.Style.FILL);
columnarPaint.setAntiAlias(true);
columnarPaint.setStrokeWidth(dip2px(getContext(), 1));
columnarPaint.setStrokeCap(Paint.Cap.ROUND);
columnarPaint.setStrokeJoin(Paint.Join.ROUND);
textPaint = new TextPaint();
textPaint.setColor(getResources().getColor(R.color.mask_color));
textPaint.setTextSize(sp2px(getContext(), 14));
textPaint.setStrokeWidth(dip2px(getContext(), 1));
}
@Override
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
super.onLayout(changed, left, top, right, bottom);
mWidth = getWidth();
mHeight = getHeight();
}
/**
* ==================================
* =======
* =======
* =======
* ==================================
*
* @param canvas
*/
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
int startLeftOffset = dip2px(getContext(), 16);
int spacing = dip2px(getContext(), 12);
int columnarHeight = dip2px(getContext(), 40);
int left = startLeftOffset + mWidth / 4;
int top = 0;
for (int i = 0; i < columnarDatas.size(); i++) {
top = startLeftOffset + columnarHeight * i + spacing * i;
ColumnarData columnarData = columnarDatas.get(i);
canvas.save();
canvas.translate(startLeftOffset, top + dip2px(getContext(), 5));
//实现文字换行显示
StaticLayout myStaticLayout
= new StaticLayout(columnarData.name,
textPaint,
left,
Layout.Alignment.ALIGN_NORMAL,
1.0f,
0.0f,
false);
myStaticLayout.draw(canvas);
//恢复图层
canvas.restore();
columnarPaint.setColor(columnarData.resIdColor);
if (currentBarProgress[i] < (mWidth - (mWidth / 2 + startLeftOffset)) * columnarData.count / totalCount) {
currentBarProgress[i] += 5;
postInvalidateDelayed(10);
}
//这是画圆柱
//float left, float top, float right, float bottom, @NonNull Paint paint
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
canvas.drawRoundRect(left + startLeftOffset,
top,
left + startLeftOffset + currentBarProgress[i],
columnarHeight + top,
(float) dip2px(getContext(), 2),
(float) dip2px(getContext(), 2),
columnarPaint);
} else {
canvas.drawRect(left + startLeftOffset,
top,
left + startLeftOffset + currentBarProgress[i],
columnarHeight + top,
columnarPaint);
}
if (currentCount[i] < (int) columnarData.count) {
currentCount[i] += 1;
postInvalidateDelayed(20);
}
//这是画字体
canvas.drawText(String.format("%d次", currentCount[i]),
left + startLeftOffset + currentBarProgress[i] + startLeftOffset,
top + dip2px(getContext(), 25), textPaint);
}
}
public ColumnarView setTotalCount(float totalCount) {
this.totalCount = totalCount;
return this;
}
public void setColumnarDatas(List<ColumnarData> columnarDatas) {
this.columnarDatas = columnarDatas;
int size = columnarDatas.size();
currentBarProgress = new int[size];
currentCount = new int[size];
postInvalidate();
}
public static class ColumnarData {
public String name;//左边名字
public float count;//数量
public int resIdColor;//柱状的颜色
public ColumnarData(String name, float count, int resIdColor) {
this.name = name;
this.count = count;
this.resIdColor = resIdColor;
}
}
/**
* 创建数据
*
* @param name
* @param count
* @param resIdColor
* @return
*/
public static ColumnarData createColumnarData(String name, float count, int resIdColor) {
return new ColumnarData(name, count, resIdColor);
}
/**
* 根据手机的分辨率从 dp 的单位 转成为 px(像素)
*/
public static int dip2px(Context context, float dpValue) {
final float scale = context.getResources().getDisplayMetrics().density;
return (int) (dpValue * scale + 0.5f);
}
public static int sp2px(Context context, float spValue) {
final float fontScale = context.getResources().getDisplayMetrics().scaledDensity;
return (int) (spValue * fontScale + 0.5f);
}
}

用法很简单

 mCv.setTotalCount(100f).setColumnarDatas(
Arrays.asList(
ColumnarView.createColumnarData("1我爱中国,爱共产党,我爱中国", 30f, resources.getColor(R.color.google_red)),
ColumnarView.createColumnarData("2我爱中国,爱共产党,我爱中国", 40f, resources.getColor(R.color.google_green)),
ColumnarView.createColumnarData("3我爱中国,爱共产党,我爱中国", 50f, resources.getColor(R.color.google_yellow)),
ColumnarView.createColumnarData("4我爱中国,爱共产党,我爱中国", 60f, resources.getColor(R.color.google_blue)),
ColumnarView.createColumnarData("5我爱中国,爱共产党,我爱中国", 50f, resources.getColor(R.color.colorAccent)),
ColumnarView.createColumnarData("6我爱中国,爱共产党,我爱中国", 100f, resources.getColor(R.color.colorPrimaryDark))
)
);

最后代码地址:https://github.com/moz1q1/WalleLibrary

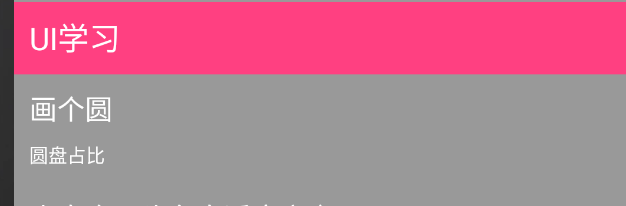

截图如下,点击这个按钮可以看
