Android自定义九宫格输入框

释放双眼,带上耳机,听听看~!

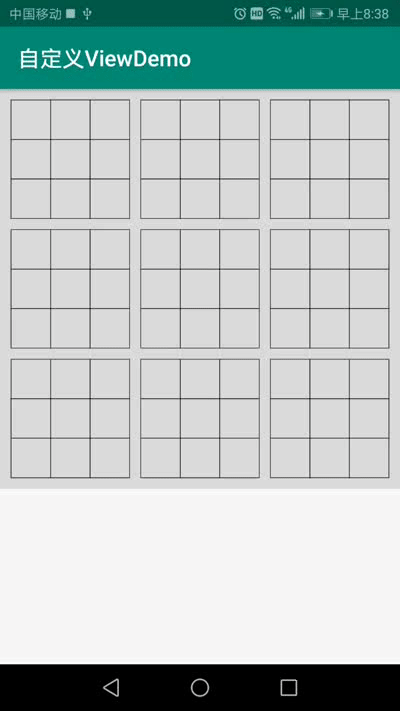

效果

九宫格输入框

实现

  • 绘制宫格分割线
    这里我们用一个RectF类型的数组来装载数据。在onSizeChanged方法中获取到控件尺寸,经过计算,将81个位置合适的矩形保存到数组中。
  • 绘制点击效果
    onTouchEvent方法中监听手指离开事件,当手指离开,获取到当前点击区域的RectF,并将状态同样保存到一个数组中。
  • 绘制输入内容
    输入内容利用onTextChanged方法获取,同样保存到一个数组中。
  • PS
    控件中没有考虑UI重建数据保存问题,使用中要注意这点~~~

这三个数组中数据一一对应,在onDraw中,根据三个数组中数据内容绘制界面。完成我们的自定义View。

源码

/**
 * 自定义九宫格输入框
 * attrs: customTableLineColor  宫格分割线颜色
 * attrs: customTableLineWidth  宫格分割线宽度
 * attrs: customTablePressColor 宫格选中时背景颜色
 * attrs: customTableSpace      大宫格间隔
 * attrs: customTableTextColor  宫格输入文字颜色
 * attrs: customTableTextSize   宫格输入文字大小
 * attrs: customTableAngle      宫格圆角尺寸
 * 默认值请查看 {@link CustomEditText#initAttrs(Context, AttributeSet)}
 */
public class CustomEditText extends AppCompatEditText {
    private static final String TAG = "CustomEditText";
    //宫格位置
    private final RectF[] mTableList = new RectF[81];
    //宫格状态
    private final Boolean[] mTableState = new Boolean[81];
    //宫格数据
    private final Integer[] mTableListNumber = new Integer[81];
    //绘制宫格画笔
    private Paint mPaint;
    //绘制宫格背景画笔
    private Paint mBackgroundPaint;
    //绘制文字画笔
    private TextPaint mTextPaint;
    //手指离开屏幕X轴坐标
    private float mTouchX;
    //手指离开屏幕Y轴坐标
    private float mTouchY;
    //表格内文字尺寸
    private float mTextSize;
    //表格内文字颜色
    private int mTextColor;
    //表格分割线颜色
    private int mTableLineColor;
    //选中对应宫格背景颜色
    private int mTablePressColor;
    //表格分割线宽度
    private float mTableLineWidht;
    //大宫格间隔
    private float mTableSpace;
    //宫格圆角尺寸
    private float mTableAngle;

    public CustomEditText(Context context) {
        this(context, null);
    }

    public CustomEditText(Context context, AttributeSet attrs) {
        this(context, attrs, R.attr.editTextStyle);
    }

    public CustomEditText(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        initAttrs(context, attrs);
        initSet();
        initPaint();
    }

    /**
     * 初始化自定义属性
     */
    private void initAttrs(Context context, AttributeSet attrs) {
        TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.CustomEditText);
        mTextColor = typedArray.getColor(R.styleable.CustomEditText_customTableTextColor, Color.parseColor("#000000"));
        mTableLineColor = typedArray.getColor(R.styleable.CustomEditText_customTableLineColor, Color.parseColor("#000000"));
        mTablePressColor = typedArray.getColor(R.styleable.CustomEditText_customTablePressColor, Color.parseColor("#DDDDDD"));
        mTextSize = typedArray.getDimension(R.styleable.CustomEditText_customTableTextSize, TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP, 16, getResources().getDisplayMetrics()));
        mTableLineWidht = typedArray.getDimension(R.styleable.CustomEditText_customTableLineWidth, TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 1, getResources().getDisplayMetrics()));
        mTableSpace = typedArray.getDimension(R.styleable.CustomEditText_customTableSpace, TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 10, getResources().getDisplayMetrics()));
        mTableSpace = typedArray.getDimension(R.styleable.CustomEditText_customTableSpace, TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 10, getResources().getDisplayMetrics()));
        mTableAngle = typedArray.getDimension(R.styleable.CustomEditText_customTableAngle, 0);
        typedArray.recycle();
    }

    /**
     * 初始化画笔
     */
    private void initPaint() {
        mBackgroundPaint = new Paint();
        mBackgroundPaint.setAntiAlias(true);
        mBackgroundPaint.setStyle(Paint.Style.FILL);
        mBackgroundPaint.setColor(mTablePressColor);
        mPaint = new Paint();
        mPaint.setAntiAlias(true);
        mPaint.setColor(mTableLineColor);
        mPaint.setStrokeWidth(mTableLineWidht);
        mPaint.setStyle(Paint.Style.STROKE);
        mTextPaint = new TextPaint();
        mTextPaint.setColor(mTextColor);
        mTextPaint.setTextSize(mTextSize);
        mTextPaint.setAntiAlias(true);
        mTextPaint.setTextAlign(Paint.Align.CENTER);
    }

    /**
     * 初始化EditText基础设置
     */
    private void initSet() {
        //隐藏光标
        setCursorVisible(false);
        //设置输入类型
        setInputType(InputType.TYPE_CLASS_NUMBER);
        //限制输入一行
        setSingleLine(true);
    }


    @Override
    protected void onDraw(Canvas canvas) {
        for (int i = 0; i < mTableList.length; i++) {
            RectF rectF = mTableList[i];
            if (mTableState[i]) {
                //绘宫格制背景
                canvas.drawRoundRect(rectF, mTableAngle, mTableAngle, mBackgroundPaint);
            }
            //绘制宫格分割线
            canvas.drawRoundRect(rectF, mTableAngle, mTableAngle, mPaint);
            Integer integer = mTableListNumber[i];
            if (integer != 0) {
                //测量文字尺寸
                Rect measureTextSize = measureTextSize(integer + "");
                //绘制输入内容
                canvas.drawText(integer + "", rectF.centerX(), rectF.centerY() + measureTextSize.height() / 2.0F, mTextPaint);
            }
        }
    }


    @Override
    public boolean onTouchEvent(MotionEvent event) {
        if (event.getAction() == MotionEvent.ACTION_UP) {//手指离开
            mTouchX = event.getX();
            mTouchY = event.getY();
            //检查输入内容和状态是否对应
            for (int i = 0; i < mTableListNumber.length; i++) {
                Integer integer = mTableListNumber[i];
                if (integer == 0) {
                    //背景应该为透明
                    if (mTableState[i]) {
                        mTableState[i] = false;
                    }
                }
            }
            //设置选中宫格
            for (int i = 0; i < mTableList.length; i++) {
                if (mTableList[i].contains(mTouchX, mTouchY)) {
                    mTableState[i] = true;
                    invalidate();
                    break;
                }
            }
        }
        if (event.getAction() == MotionEvent.ACTION_DOWN) {
            performClick();
        }
        return super.onTouchEvent(event);
    }

    @Override
    public boolean performClick() {
        return super.performClick();
    }

    @Override
    protected void onTextChanged(CharSequence text, int start, int lengthBefore, int lengthAfter) {
        super.onTextChanged(text, start, lengthBefore, lengthAfter);
        String trim = text.toString().trim();
        if (!TextUtils.isEmpty(trim) && TextUtils.isDigitsOnly(trim)) {
            //保存输入内容
            for (int i = 0; i < mTableList.length; i++) {
                if (mTableList[i].contains(mTouchX, mTouchY)) {
                    mTableListNumber[i] = Integer.parseInt(trim);
                    //修改宫格背景状态
                    mTableState[i] = true;
                    //清空默认EditText输入内容
                    CustomEditText.this.setText("");
                    break;
                }
            }
        }
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        //初始化宫格位置数据
        int paddingLeft = getPaddingLeft();
        int paddingRight = getPaddingRight();
        int paddingTop = getPaddingTop();
        int measuredWidth = getMeasuredWidth();
        //表格实际显示的宽度
        int tableWidht = (int) (measuredWidth - mTableSpace * 2 - paddingLeft - paddingRight);
        //每个表格的宽度
        float singleTableWidth = tableWidht / 3.0F;
        for (int i = 0; i < 9; i++) {
            float top;
            float left;
            float bottom;
            float right;
            left = paddingLeft + (singleTableWidth * (i % 3)) + (mTableSpace * (i % 3));
            right = left + singleTableWidth;
            top = paddingTop + (singleTableWidth * (i / 3)) + (mTableSpace * (i / 3));
            bottom = top + singleTableWidth;
            //最大九个宫格的矩形
            RectF rectF = new RectF(left, top, right, bottom);
            float width = rectF.width();
            float singleTableWidthMin = width / 3.0F;
            for (int j = 0; j < 9; j++) {
                float topMin;
                float leftMin;
                float bottomMin;
                float rightMin;
                leftMin = singleTableWidthMin * (j % 3) + rectF.left;
                rightMin = leftMin + singleTableWidthMin;
                topMin = singleTableWidthMin * (j / 3) + rectF.top;
                bottomMin = topMin + singleTableWidthMin;
                //每个小宫格的矩形
                RectF rectFMin = new RectF(leftMin, topMin, rightMin, bottomMin);
                for (int k = 0; k < mTableList.length; k++) {
                    if (mTableList[k] == null) {
                        mTableList[k] = rectFMin;
                        mTableListNumber[k] = 0;
                        mTableState[k] = false;
                        break;
                    }
                }
            }
        }
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        //强制控件为正方形
        super.onMeasure(widthMeasureSpec, widthMeasureSpec);
    }

    /**
     * 测量文字的尺寸
     *
     * @return 一个汉字的矩阵
     */
    private Rect measureTextSize(String content) {
        Rect mRect = null;
        if (!TextUtils.isEmpty(content)) {
            if (mTextPaint != null) {
                mRect = new Rect();
                mTextPaint.getTextBounds(content, 0, content.length(), mRect);
            }
        }
        return mRect;
    }
}
  • 自定义属性
<resources>
    <declare-styleable name="CustomEditText">
        <attr name="customTableTextSize" format="dimension" />
        <attr name="customTableTextColor" format="color" />
        <attr name="customTableLineColor" format="color" />
        <attr name="customTableLineWidth" format="dimension" />
        <attr name="customTableSpace" format="dimension" />
        <attr name="customTablePressColor" format="color"/>
        <attr name="customTableAngle" format="integer"/>
    </declare-styleable>
</resources>
