背景

前段时间做了一些项目解耦重构和一些组件化的工作,推送是很多app种涉及到的应用场景,所以把推送模块做了一些重构的工作,让推送模块能够独立于业务适用于各种的业务场景。

本文的代码链接:PTNotificationManager

分析

推送消息模块和其他模块从技术角度来看是属于同一级别的模块,推送消息模块为了能够和其他业务组件之间既有通信又能解耦,这复合设计中的控制反转原则,依赖的双方依赖于对方的抽象而不依赖于具体的实现,观察者模式就是一种典型的控制反转场景,观察者模式很适合推送模块的独立和解耦。

实现

观察者模式简析

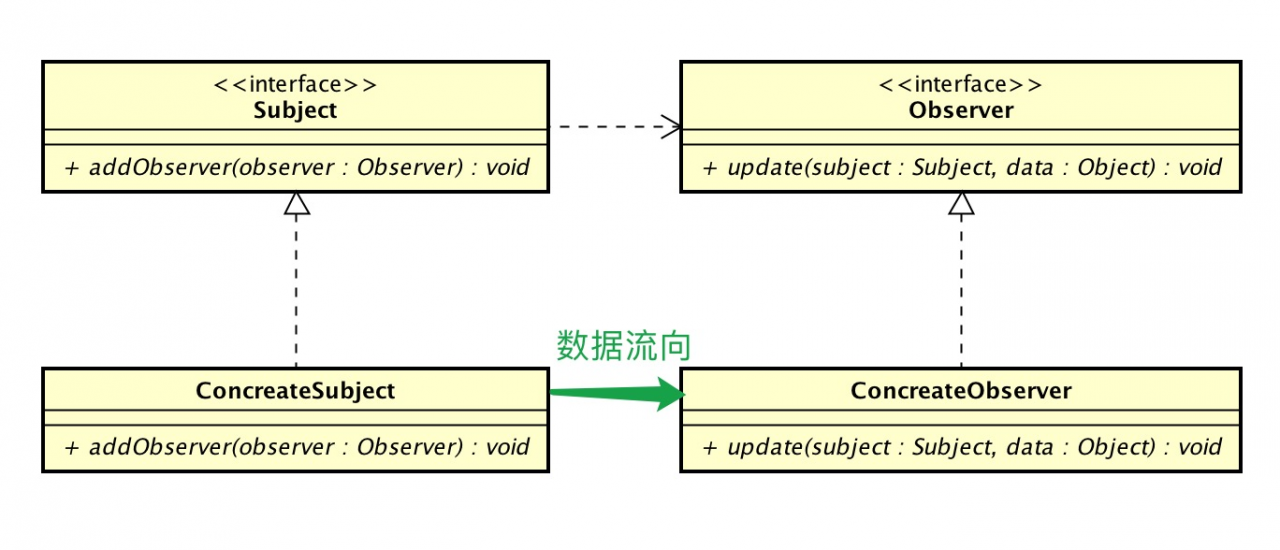

观察者模式类图

这是一个简单的观察者的类图结构

  • 抽象接口 Subject 有一个注册观察者的方法
  • 抽象接口 Observer 有一个获取 Subject 数据更新的方法
  • SubjectObserver 具体的子类重写对应的方法,处理数据
  • 有新的消息,ConcreateSubject 会把消息发送给已注册的ConcreateObserverConcreateObserver 负责接收消息进行处理

代码实现

抽象接口

OC接口是使用 protocol 实现的,定义观察者(Observer)和被观察主题(Subject)如下:

@protocol PTNotificationObservable;
@protocol PTNotificationObserver <NSObject>
- (void)update:(id<PTNotificationObservable>)sender data:(id)data;
@end
@protocol PTNotificationObservable <NSObject>
- (void)addObserver:(id<PTNotificationObserver>)observer;
@end

具体实现

推送模块管理类对应的是被观察主题(Subject),定义了如下接口:

  • APP启动,初始化推送配置
  • 处理注册Token
  • 处理接收消息
  • 添加观察者

头文件如下:

#import <Foundation/Foundation.h>
#import "PTNotificationProtocllDefine.h"
#undef    AS_SINGLETON
#define AS_SINGLETON
+ (instancetype)sharedInstance;
#undef    DEF_SINGLETON
#define DEF_SINGLETON
+ (instancetype)sharedInstance{
static dispatch_once_t once;
static id __singleton__;
dispatch_once( &once, ^{ __singleton__ = [[self alloc] init]; } );
return __singleton__;
}
@interface PTNotificationManager : NSObject <PTNotificationObservable>
AS_SINGLETON
// 处理APP启动,配置推送
- (void)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions;
// 处理注册Token
- (void)application:(UIApplication *)application didRegisterForRemoteNotificationsWithDeviceToken:(NSData *)deviceToken;
// 处理接收消息
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo;
// 添加观察者
- (void)addObserver:(id<PTNotificationObserver>)observer;
- (void)testSendNotification;
@end

集成的是第三方的友盟消息推送,所有里面包含了友盟一些API的使用。
实现文件:

#import "PTNotificationManager.h"
#import "UMessage.h"
#if __IPHONE_OS_VERSION_MAX_ALLOWED >= 100000
#import <UserNotifications/UserNotifications.h>
#endif
#define UMengAppKey @"xxxxx"
@interface PTNotificationManager ()<UNUserNotificationCenterDelegate>
@property (nonatomic, strong) NSPointerArray* observers;
@end
@implementation PTNotificationManager
DEF_SINGLETON
- (void)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
//设置 AppKey 及 LaunchOptions
[UMessage startWithAppkey:UMengAppKey launchOptions:launchOptions];
//注册通知
[UMessage registerForRemoteNotifications];
//iOS10必须加下面这段代码。
if ([[[UIDevice currentDevice] systemVersion]intValue] >= 10) {
UNUserNotificationCenter *center = [UNUserNotificationCenter currentNotificationCenter];
center.delegate=self;
UNAuthorizationOptions types10=UNAuthorizationOptionBadge|UNAuthorizationOptionAlert|UNAuthorizationOptionSound;
[center requestAuthorizationWithOptions:types10 completionHandler:^(BOOL granted, NSError * _Nullable error) {
if (granted) {
//点击允许
} else {
//点击不允许
}
}];
}
//如果你期望使用交互式(只有iOS 8.0及以上有)的通知,请参考下面注释部分的初始化代码
if (([[[UIDevice currentDevice] systemVersion]intValue]>=8)&&([[[UIDevice currentDevice] systemVersion]intValue]<10)) {
//        UIMutableUserNotificationAction *action1 = [[UIMutableUserNotificationAction alloc] init];
//        action1.identifier = @"action1_identifier";
//        action1.title=@"打开应用";
//        action1.activationMode = UIUserNotificationActivationModeForeground;当点击的时候启动程序
//
//        UIMutableUserNotificationAction *action2 = [[UIMutableUserNotificationAction alloc] init];  第二按钮
//        action2.identifier = @"action2_identifier";
//        action2.title=@"忽略";
//        action2.activationMode = UIUserNotificationActivationModeBackground;当点击的时候不启动程序,在后台处理
//        action2.authenticationRequired = YES;需要解锁才能处理,如果action.activationMode = UIUserNotificationActivationModeForeground;则这个属性被忽略;
//        action2.destructive = YES;
//        UIMutableUserNotificationCategory *actionCategory1 = [[UIMutableUserNotificationCategory alloc] init];
//        actionCategory1.identifier = @"category1";这组动作的唯一标示
//        [actionCategory1 setActions:@[action1,action2] forContext:(UIUserNotificationActionContextDefault)];
//        NSSet *categories = [NSSet setWithObjects:actionCategory1, nil];
//        [UMessage registerForRemoteNotifications:categories];
}
//如果要在iOS10显示交互式的通知,必须注意实现以下代码
if ([[[UIDevice currentDevice] systemVersion]intValue]>=10) {
//        UNNotificationAction *action1_ios10 = [UNNotificationAction actionWithIdentifier:@"action1_ios10_identifier" title:@"打开应用" options:UNNotificationActionOptionForeground];
//        UNNotificationAction *action2_ios10 = [UNNotificationAction actionWithIdentifier:@"action2_ios10_identifier" title:@"忽略" options:UNNotificationActionOptionForeground];
//UNNotificationCategoryOptionNone
//UNNotificationCategoryOptionCustomDismissAction  清除通知被触发会走通知的代理方法
//UNNotificationCategoryOptionAllowInCarPlay       适用于行车模式
//        UNNotificationCategory *category1_ios10 = [UNNotificationCategory categoryWithIdentifier:@"category101" actions:@[action1_ios10,action2_ios10]   intentIdentifiers:@[] options:UNNotificationCategoryOptionCustomDismissAction];
//        NSSet *categories_ios10 = [NSSet setWithObjects:category1_ios10, nil];
//        UNUserNotificationCenter *center = [UNUserNotificationCenter currentNotificationCenter];
//        [center setNotificationCategories:categories_ios10];
}
//如果对角标,文字和声音的取舍,请用下面的方法
//UIRemoteNotificationType types7 = UIRemoteNotificationTypeBadge|UIRemoteNotificationTypeAlert|UIRemoteNotificationTypeSound;
//UIUserNotificationType types8 = UIUserNotificationTypeAlert|UIUserNotificationTypeSound|UIUserNotificationTypeBadge;
//[UMessage registerForRemoteNotifications:categories withTypesForIos7:types7 withTypesForIos8:types8];
//for log
[UMessage setLogEnabled:YES];
// 应用从通知启动
NSDictionary* userInfo = [launchOptions objectForKey:UIApplicationLaunchOptionsRemoteNotificationKey];
if (userInfo) {
dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(1 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
[self handleNotificationUserInfo:userInfo];
});
}
}
- (void)application:(UIApplication *)application didRegisterForRemoteNotificationsWithDeviceToken:(NSData *)deviceToken {
//1.2.7版本开始不需要用户再手动注册devicetoken,SDK会自动注册
// [UMessage registerDeviceToken:deviceToken];
NSString* tokenString = [self stringDevicetoken:deviceToken];
NSLog(@"==tokenString = %@", tokenString);
printf([[NSString stringWithFormat:@"nntokenString = %@nn", tokenString] UTF8String]);
}
/**
- (void)application:(UIApplication *)application didFailToRegisterForRemoteNotificationsWithError:(NSError *)error
{
//如果注册不成功,打印错误信息,可以在网上找到对应的解决方案
//1.2.7版本开始自动捕获这个方法,log以application:didFailToRegisterForRemoteNotificationsWithError开头
} */
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo {
[[NSNotificationCenter defaultCenter] postNotificationName:@"userInfoNotification" object:self userInfo:@{@"userinfo":[NSString stringWithFormat:@"%@",userInfo]}];
//关闭友盟自带的弹出框
[UMessage setAutoAlert:NO];
[UMessage didReceiveRemoteNotification:userInfo];
if (application.applicationState != UIApplicationStateActive) {
[self handleNotificationUserInfo:userInfo];
}
}
// 添加观察者
- (void)addObserver:(id<PTNotificationObserver>)observer {
[self.observers addPointer:(__bridge void * _Nullable)(observer)];
}
- (void)testSendNotification {
[self handleNotificationUserInfo:@{@"kkk": @"kkk"}];
}
- (void)handleNotificationUserInfo:(NSDictionary *)userInfo {
for (id<PTNotificationObserver> observer in self.observers.allObjects) {
[observer update:self data:userInfo];
}
}
#pragma mark - ......::::::: UNUserNotificationCenterDelegate :::::::......
//iOS10新增:处理前台收到通知的代理方法
-(void)userNotificationCenter:(UNUserNotificationCenter *)center willPresentNotification:(UNNotification *)notification withCompletionHandler:(void (^)(UNNotificationPresentationOptions))completionHandler {
NSDictionary * userInfo = notification.request.content.userInfo;
if([notification.request.trigger isKindOfClass:[UNPushNotificationTrigger class]]) {
//应用处于前台时的远程推送接受
//必须加这句代码
[UMessage setAutoAlert:NO];
[UMessage didReceiveRemoteNotification:userInfo];
}else{
//应用处于前台时的本地推送接受
}
}
//iOS10新增:处理后台点击通知的代理方法
- (void)userNotificationCenter:(UNUserNotificationCenter *)center didReceiveNotificationResponse:(UNNotificationResponse *)response withCompletionHandler:(nonnull void (^)(void))completionHandler {
NSDictionary * userInfo = response.notification.request.content.userInfo;
if([response.notification.request.trigger isKindOfClass:[UNPushNotificationTrigger class]]) {
//应用处于后台时的远程推送接受
//必须加这句代码
[UMessage didReceiveRemoteNotification:userInfo];
[self handleNotificationUserInfo:userInfo];
}else{
//应用处于后台时的本地推送接受
}
}
#pragma mark - ......::::::: Helper :::::::......
-(NSString *)stringDevicetoken:(NSData *)deviceToken {
NSString *token = [deviceToken description];
NSString *pushToken = [[[token stringByReplacingOccurrencesOfString:@"<"withString:@""] stringByReplacingOccurrencesOfString:@">"withString:@""] stringByReplacingOccurrencesOfString:@" " withString:@""];
return pushToken;
}
#pragma mark - ......::::::: Lazy Load :::::::......
- (NSPointerArray *)observers {
if (nil == _observers) {
_observers = [NSPointerArray weakObjectsPointerArray];
}
return _observers;
}
@end

使用方法:

  • ViewController 实现了 PTNotificationObserver Protocol 作为观察者
  • 重写 - (void)update:(id<PTNotificationObservable>)sender data:(id)data 方法打印接收到的消息
  • - (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event 模拟让消息模块发送消息
@interface PTViewController () <PTNotificationObserver>
@end
@implementation PTViewController
- (void)viewDidLoad
{
[super viewDidLoad];
[[PTNotificationManager sharedInstance] addObserver:self];
}
- (void)didReceiveMemoryWarning
{
[super didReceiveMemoryWarning];
// Dispose of any resources that can be recreated.
}
// 接收到消息
- (void)update:(id<PTNotificationObservable>)sender data:(id)data {
NSLog(@"%@", data);
}
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event {
[[PTNotificationManager sharedInstance] testSendNotification];
}

使用cocopods集成

使用 pod lib create 命令创建私有库

➜  DevPods pod lib create PTNotificationManager
Cloning `https://github.com/CocoaPods/pod-template.git` into `PTNotificationManager`.
Configuring PTNotificationManager template.
------------------------------
To get you started we need to ask a few questions, this should only take a minute.
If this is your first time we recommend running through with the guide:
- http://guides.cocoapods.org/making/using-pod-lib-create.html
( hold cmd and double click links to open in a browser. )
What language do you want to use?? [ Swift / ObjC ]
> Objc
Would you like to include a demo application with your library? [ Yes / No ]
>
yes
Which testing frameworks will you use? [ Specta / Kiwi / None ]
> None
Would you like to do view based testing? [ Yes / No ]
> No
What is your class prefix?
> PT
Running pod install on your new library.
Analyzing dependencies
Fetching podspec for `PTNotificationManager` from `../`
Downloading dependencies
Installing PTNotificationManager (0.1.0)
Generating Pods project
Integrating client project
[!] Please close any current Xcode sessions and use `PTNotificationManager.xcworkspace` for this project from now on.
Sending stats
Pod installation complete! There is 1 dependency from the Podfile and 1 total pod installed.
[!] Automatically assigning platform ios with version 9.3 on target PTNotificationManager_Example because no platform was specified. Please specify a platform for this target in your Podfile. See `https://guides.cocoapods.org/syntax/podfile.html#platform`.
Ace! you're ready to go!
We will start you off by opening your project in Xcode
open 'PTNotificationManager/Example/PTNotificationManager.xcworkspace'
To learn more about the template see `https://github.com/CocoaPods/pod-template.git`.
To learn more about creating a new pod, see `http://guides.cocoapods.org/making/making-a-cocoapod`.
➜  DevPods

修改 PTNotificationManager.podspec 文件如下

Pod::Spec.new do |s|
s.name             = 'PTNotificationManager'
s.version          = '0.1.0'
s.summary          = 'A short description of PTNotificationManager.'
s.description      = <<-DESC
Oh PTNotificationManager
DESC
s.homepage         = 'https://github.com/flypigrmvb/PTNotificationManager'
s.license          = { :type => 'MIT', :file => 'LICENSE' }
s.author           = { 'flypigrmvb' => '862709539@qq.com' }
s.source           = { :git => 'https://github.com/flypigrmvb/PTNotificationManager.git', :tag => s.version.to_s }
s.ios.deployment_target = '8.0'
s.source_files = 'PTNotificationManager/Classes/**/*'
# s.public_header_files = 'Pod/Classes/**/*.h'
# 添加依赖的系统静态库
s.libraries = 'xml2', 'z', 'c++', 'stdc++.6', 'sqlite3'
# 添加系统的farme依赖库
s.frameworks = 'UIKit', 'MapKit'
# 添加其他Pod依赖库
s.dependency 'UMessage'
end

Example项目的 Podfile 添加如下内容


platform :ios, '8.0'
inhibit_all_warnings!
target 'PTNotificationManager_Example' do
pod 'PTNotificationManager', :path => '../'
pod 'UMessage', :podspec => 'https://raw.githubusercontent.com/kkme/UMessage/master/UMessage.podspec'
end

以上步骤Example项目就可以跑起来了,完成了简单的推送消息模块的组件化和解耦,方便在不同的业主场景中使用。
