背景

项目使用到了一些第三方平台的登录、分享、支付功能,包括了微信、微博、QQ平台登录分享和支付宝、微信平台的支付,使用的是原生的接入配置集成的,功能上基本上对照着SDK的开发文档就能够成功的集成了。但是问题也后面也渐渐的暴露出来了,第三方平台的登录、分享、支付功能不同平台的的SDK实现方式还是有很大的差别的,包括了输入的参数以及回调方式都有差别很大,如果只是简单的按照文档集成,那么一定会遇到代码调用结构很乱,回调杂乱不统一的问题,更为严重的是,后面如果添加删除一个第三发平台,那么修改变得很困难和难以维护,这违反了软件开发中的开闭原则,所以考虑到了把这部分代码做一个重构。

结果

项目实现了添加和删除第三方平台的可扩展,添加或者删除第三发平台只要增加或者移除对应的类和配置即可,不会涉及到已有的代码,客户端的调用也不影响。

我是代码,欢迎点我??YTThirdPlatformManager

这篇文章的续集 iOS第三方平台集成组件化续集 介绍了在这个架构的基础上使用pod库的特性,更进一步的进行了模块化和解耦的处理,每个第三方平台的业务代码单独为pod库的子模块,可以按需的导入一个或者多个第三方平台。

先上一个客户端代码调用的代码

   [self addActionWithName:@"QQ Login" callback:^{
[[PTThirdPlatformConfigManager sharedInstance] signInWithType:PTThirdPlatformTypeTencentQQ fromViewController:weakSelf callback:^(ThirdPlatformUserInfo *userInfo, NSError *err) {
}];
}];
[self addActionWithName:@"Wechat Login" callback:^{
[[PTThirdPlatformConfigManager sharedInstance] signInWithType:PTThirdPlatformTypeWechat fromViewController:weakSelf callback:^(ThirdPlatformUserInfo *userInfo, NSError *err) {
}];
}];

问题分析

首先从客户端的角度分析,对于登录、分享、支付功能,基本上平台功能调用的输入和输出是固定的:

输入 输出
登录 第三发平台类型 第三发平台的用户信息(UID、用户名…)
分享 分享的内容(图片、标题、文字、超链接) 第三发平台类型、分享的结果
支付 第三发平台类型、支付信息(订单信息、签名信息… 第三发平台类型、支付的结果

确定了输入输出关系,接下来的事情就是统一输入输出,这也是这次代码架构的关键。

架构设计

基于以上的分析,对不同平台的SDK的请求和响应设计了对应的接口进行隔离,这部分的设计类似于抽象工厂,不同的第三发平台抽象为了管理工厂,管理工厂实现了一个共同的接口,不同平台的操作(登录、分享、支付的操作可以认为是产品)抽象为了共同的接口调用(这里和抽象工厂不同,没有对这些操作封装为对象然后使用对象再去操作,主要是为了保持代码的简单,防止设计过度)

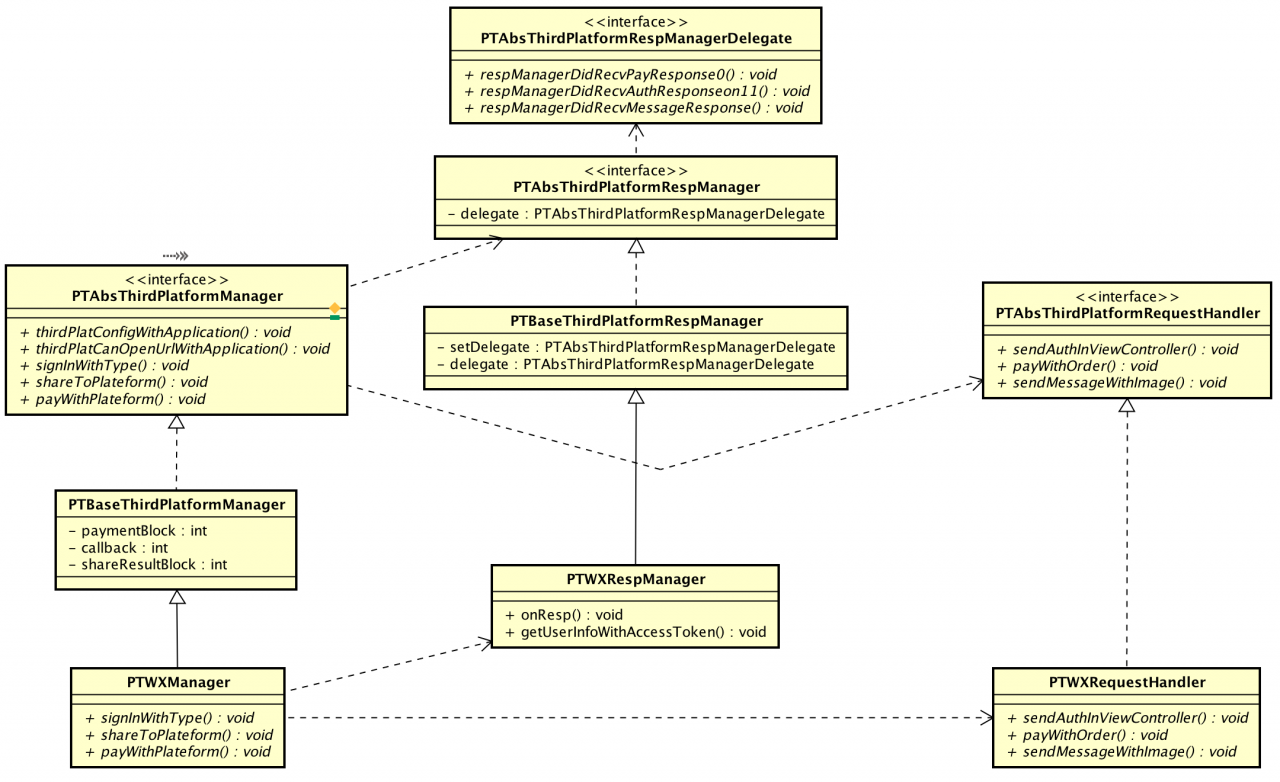

单个平台(以微信平台为例)的类结构图:

结构图

结构说明:

  • 接口PTAbsThirdPlatformManager抽象了客户端对第三发平台的配置和请求
  • 接口PTAbsThirdPlatformRequestHandler抽象了第三方平台的请求
  • 接口PTAbsThirdPlatformRespManager抽象了第三方平台的响应通过PTAbsThirdPlatformRespManagerDelegate把数据统一回调到PTAbsThirdPlatformManager子类中
  • 类PTWXManager是PTAbsThirdPlatformManager的具体实现,进行微信第三方平台的登录、分享和支付处理
  • 类PTWXRequestHandler是PTAbsThirdPlatformRequestHandler的实现,这里和微信的API打交道
  • 类PTWXRespManager是PTAbsThirdPlatformRespManager的实现,在这里处理微信SDK的回调,并通过PTAbsThirdPlatformRespManagerDelegate把数据回调到PTWXManager
    这样添加其他平台,只要对应的添加 【PT平台Manager】、【PT平台RequestHandler】、【PT平台RespManager】这三个类就好了

不同平台的结构好了,接下来需要有一个地方统一管理不同平台,进行统一的配置管理、请求管理:

管理类结构图

PTThirdPlatformConfigManager也是PTAbsThirdPlatformManager实现,里面配置了不同的平台对应的管理器,客户端只要传递不同平台的类型以及需要对应的操作,就可以调用对应平台的功能了。现在客户端可以直接和PTThirdPlatformConfigManager打交道了,而不用去和具体的比如PTWXManager、PTWeiboManager等管理器打交道了。
如果客户添加了新的平台,需要再PTThirdPlatformConfigManager进行配置就行了,然后客户端调用的逻辑保持不变。

代码实现

抽象接口部分

客户端第三方平台功能调用的抽象接口,这些接口是第三发平台需要使用到了接口的并集,有的平台需要用到全部,有的只需要部分即可,比如微信到了登录、分享、支付;支付宝用到了只有支付不同的平台根据功能的不同,实现对应的方法即可。

//
//  PTAbsThirdPlatformManager.h
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>
#import "PTThirdPlatformDefine.h"
#import "PTThirdPlatformObject.h"
#import "UtilMacro.h"
@class PTOrderModel;
@protocol PTAbsThirdPlatformManager <NSObject>
@optional
- (void)thirdPlatConfigWithApplication:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions;
/**
第三方平台处理URL
*/
- (BOOL)thirdPlatCanOpenUrlWithApplication:(UIApplication *)application
openURL:(NSURL *)url
sourceApplication:(NSString *)sourceApplication
annotation:(id)annotation;
/**
第三方登录
@param thirdPlatformType 第三方平台
@param viewController 从哪个页面调用的分享
@param callback 登录回调
*/
- (void)signInWithType:(PTThirdPlatformType)thirdPlatformType
fromViewController:(UIViewController *)viewController
callback:(void (^)(ThirdPlatformUserInfo* userInfo, NSError* err))callback;
/**
第三方分享
@param platform 第三方分享平台
@param image 分享的图片
@param imageUrlString 分享的图片地址
@param title 分享的标题
@param text 分享的文字
@param urlString 分享的URL
@param fromViewController 从哪个页面调用的分享
@param shareResultBlock 分享结果回调
*/
- (void)shareToPlateform:(PTShareType)platform
image:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
title:(NSString*)title
text:(NSString*)text
urlString:(NSString*)urlString
fromViewController:(UIViewController*)fromViewController
shareResultBlock:(void (^) (PTShareType platform, PTShareResult shareResult, NSError* error))shareResultBlock;
/**
第三方支付
@param payMethodType 支付平台
@param order 支付订单模型
@param paymentBlock 支付结果回调
*/
- (void)payWithPlateform:(PTPaymentMethodType)payMethodType
order:(PTOrderModel*)order
paymentBlock:(void (^)(BOOL result))paymentBlock;
@end

具体的第三发平台调用SDK接口的抽象,因为考虑到考虑到代码的功能清晰性,所以把SDK接口调用的请求和相应部分单独出来,虽然增加了类和代码量,但在代码的职责分离上更清晰。

//
//  PTAbsThirdPlatformRequestHandler.h
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>
#import "PTThirdPlatformDefine.h"
@class PTOrderModel;
@protocol PTAbsThirdPlatformRequestHandler <NSObject>
@optional
// 第三方授权
+ (BOOL)sendAuthInViewController:(UIViewController *)viewController;
// 支付
+ (BOOL)payWithOrder:(PTOrderModel*)order;
// 分享
+ (BOOL)sendMessageWithImage:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
urlString:(NSString*)urlString
title:(NSString*)title
text:(NSString*)text
shareType:(PTShareType)shareType;
@end

第三发平台响应和回调部分的接口,这部分主要负责把不同SDK的不同回调方式和回调方法统一进行回调,通过PTAbsThirdPlatformRespManagerDelegate定义的方法回调到具体的Manager。

//
//  PTAbsThirdPlatformRespManager.h
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import <Foundation/Foundation.h>
#import "PTThirdPlatformDefine.h"
#import "PTThirdPlatformObject.h"
#import "UtilMacro.h"
// RespManagerDelegate
@protocol PTAbsThirdPlatformRespManagerDelegate <NSObject>
@optional
- (void)respManagerDidRecvPayResponse:(BOOL)result platform:(PTPaymentMethodType)platform;
- (void)respManagerDidRecvAuthResponse:(ThirdPlatformUserInfo *)response platform:(PTThirdPlatformType)platform;
- (void)respManagerDidRecvMessageResponse:(BOOL)result platform:(PTShareType)platform;
@end
@protocol PTAbsThirdPlatformRespManager <NSObject>
@optional
// 代理,子类需要设置getter/setter
@property (nonatomic, weak) id<PTAbsThirdPlatformRespManagerDelegate> delegate;
@end

接口实现类部分

首先定义了PTBaseThirdPlatformManager类用于处理不同平台的公共部分,比如说回调block的设置,接收到PTAbsThirdPlatformRespManagerDelegate的回调然后进行客户端的block回调。此外还有分享图片的统一处理,图片统一处理好了之后交给子类进行处理,这里使用到了是模板模式。

//
//  PTBaseThirdPlatformManager.h
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import <Foundation/Foundation.h>
#import "PTAbsThirdPlatformManager.h"
@interface PTBaseThirdPlatformManager : NSObject <PTAbsThirdPlatformManager>
@property (nonatomic, copy) void (^paymentBlock)(BOOL result);
@property (nonatomic, copy) void (^callback)(ThirdPlatformUserInfo* userInfo, NSError* err);
@property (nonatomic, copy) void (^shareResultBlock)(PTShareType, PTShareResult, NSError *);
/**
第三方分享,子类重写这个方法,由父类的shareToPlateform方法调用子类的该方法
@param platform 第三方分享平台
@param image 分享的图片
@param imageUrlString 分享的图片地址
@param title 分享的标题
@param text 分享的文字
@param urlString 分享的URL
@param fromViewController 从哪个页面调用的分享
@param shareResultBlock 分享结果回调
*/
- (void)doShareToPlateform:(PTShareType)platform
image:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
title:(NSString*)title
text:(NSString*)text
urlString:(NSString*)urlString
fromViewController:(UIViewController*)fromViewController
shareResultBlock:(void (^) (PTShareType platform, PTShareResult shareResult, NSError* error))shareResultBlock;
@end
//
//  PTBaseThirdPlatformManager.m
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import "PTBaseThirdPlatformManager.h"
#import <SDWebImage/SDWebImageManager.h>
@implementation PTBaseThirdPlatformManager
- (void)thirdPlatConfigWithApplication:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
// 子类实现
NSAssert(YES, @"哥么,这里你忘记实现了");
}
/**
第三方平台处理URL
*/
- (BOOL)thirdPlatCanOpenUrlWithApplication:(UIApplication *)application
openURL:(NSURL *)url
sourceApplication:(NSString *)sourceApplication
annotation:(id)annotation {
// 子类实现
NSAssert(YES, @"哥么,这里你忘记实现了");
return NO;
}
/**
第三方分享
@param platform 第三方分享平台
@param image 分享的图片
@param imageUrlString 分享的图片地址
@param title 分享的标题
@param text 分享的文字
@param urlString 分享的URL
@param fromViewController 从哪个页面调用的分享
@param shareResultBlock 分享结果回调
*/
- (void)shareToPlateform:(PTShareType)platform
image:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
title:(NSString*)title
text:(NSString*)text
urlString:(NSString*)urlString
fromViewController:(UIViewController*)fromViewController
shareResultBlock:(void (^) (PTShareType platform, PTShareResult shareResult, NSError* error))shareResultBlock {
__block UIImage* sharedImage = nil;
if (image) {
sharedImage = image;
[self doShareToPlateform:platform image:sharedImage imageUrlString:imageUrlString title:title text:text urlString:urlString fromViewController:fromViewController shareResultBlock:shareResultBlock];
} else if (imageUrlString != nil) {
[[SDWebImageManager sharedManager] loadImageWithURL:[NSURL URLWithString:imageUrlString] options:0 progress:nil completed:^(UIImage * _Nullable image, NSData * _Nullable data, NSError * _Nullable error, SDImageCacheType cacheType, BOOL finished, NSURL * _Nullable imageURL) {
if (image) {
sharedImage = image;
} else {
sharedImage = [UIImage imageNamed:@"app_icon"];
}
[self doShareToPlateform:platform image:sharedImage imageUrlString:imageUrlString title:title text:text urlString:urlString fromViewController:fromViewController shareResultBlock:shareResultBlock];
}];
} else {
sharedImage = [UIImage imageNamed:@"signin_logo"];
[self doShareToPlateform:platform image:sharedImage imageUrlString:imageUrlString title:title text:text urlString:urlString fromViewController:fromViewController shareResultBlock:shareResultBlock];
}
}
- (void)doShareToPlateform:(PTShareType)platform
image:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
title:(NSString*)title
text:(NSString*)text
urlString:(NSString*)urlString
fromViewController:(UIViewController*)fromViewController
shareResultBlock:(void (^) (PTShareType platform, PTShareResult shareResult, NSError* error))shareResultBlock {
// 空实现,子类实现该方法
}
/**
第三方登录
@param thirdPlatformType 第三方平台
@param viewController 从哪个页面调用的分享
@param callback 登录回调
*/
- (void)signInWithType:(PTThirdPlatformType)thirdPlatformType fromViewController:(UIViewController *)viewController callback:(void (^)(ThirdPlatformUserInfo* userInfo, NSError* err))callback {
// 空实现,子类实现该方法
}
/**
第三方支付
@param payMethodType 支付平台
@param order 支付订单模型
@param paymentBlock 支付结果回调
*/
- (void)payWithPlateform:(PTPaymentMethodType)payMethodType order:(PTOrderModel*)order paymentBlock:(void (^)(BOOL result))paymentBlock {
// 空实现,子类实现该方法
}
#pragma mark - ......::::::: PTAbsThirdPlatformRespManagerDelegate :::::::......
- (void)respManagerDidRecvAuthResponse:(ThirdPlatformUserInfo *)response platform:(PTThirdPlatformType)platform {
PTOnMainThreadAsync(^{
!_callback ?: _callback(response, nil);
});
}
- (void)respManagerDidRecvMessageResponse:(BOOL)result platform:(PTShareType)platform {
PTOnMainThreadAsync(^{
if (result) {
!self.shareResultBlock ?: self.shareResultBlock(platform, PTShareResultSuccess, nil);
} else {
!self.shareResultBlock ?: self.shareResultBlock(platform, PTShareResultFailed, nil);
}
});
}
- (void)respManagerDidRecvPayResponse:(BOOL)result platform:(PTPaymentMethodType)platform {
PTOnMainThreadAsync(^{
!self.paymentBlock ?: self.paymentBlock(result);
});
}
@end

具体平台的实现,以微信为例,PTWXManager处理微信平台的SDK初始化配置;设置微信客户端的URL回调的的代理类,即PTWXRespManager的单例对象。然后就是具体的业务功能方法的重写,包含了登录、分享、支付,具体的功能则是交给PTWXRequestHandler类处理,然后设置PTWXRespManager单例对象的delegate为自身,会在父类PTBaseThirdPlatformManager统一的处理回调。

//
//  PTWXManager.m
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import "PTWXManager.h"
#import "PTWXRespManager.h"
#import "PTWXRequestHandler.h"
#import <WXApi.h>
#import "PTThirdPlatformConfigConst.h"
@interface PTWXManager () <PTAbsThirdPlatformRespManagerDelegate>
@end
@implementation PTWXManager
DEF_SINGLETON
- (void)thirdPlatConfigWithApplication:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
// 子类实现
//向微信注册
[WXApi registerApp:kWXAppID];
}
/**
第三方平台处理URL
*/
- (BOOL)thirdPlatCanOpenUrlWithApplication:(UIApplication *)application
openURL:(NSURL *)url
sourceApplication:(NSString *)sourceApplication
annotation:(id)annotation {
// 微信
if ([WXApi handleOpenURL:url delegate:[PTWXRespManager sharedInstance]]) {
return YES;
}
return NO;
}
/**
第三方登录
@param thirdPlatformType 第三方平台
@param fromViewController 从哪个页面调用的分享
@param callback 登录回调
*/
- (void)signInWithType:(PTThirdPlatformType)thirdPlatformType fromViewController:(UIViewController *)viewController callback:(void (^)(ThirdPlatformUserInfo* userInfo, NSError* err))callback {
self.callback = callback;
[PTWXRespManager sharedInstance].delegate = self;
[PTWXRequestHandler sendAuthInViewController:viewController];
}
/**
第三方分享,子类重写这个方法,由父类的shareToPlateform方法调用子类的该方法
@param platform 第三方分享平台
@param image 分享的图片
@param imageUrlString 分享的图片地址
@param title 分享的标题
@param text 分享的文字
@param urlString 分享的URL
@param fromViewController 从哪个页面调用的分享
@param shareResultBlock 分享结果回调
*/
- (void)doShareToPlateform:(PTShareType)platform
image:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
title:(NSString*)title
text:(NSString*)text
urlString:(NSString*)urlString
fromViewController:(UIViewController*)fromViewController
shareResultBlock:(void (^) (PTShareType platform, PTShareResult shareResult, NSError* error))shareResultBlock {
self.shareResultBlock = shareResultBlock;
[self doWechatShareWithImage:image urlString:urlString title:title text:text platform:platform fromViewController:fromViewController];
}
- (void)doWechatShareWithImage:(UIImage*)image
urlString:(NSString*)urlString
title:(NSString*)title
text:(NSString*)text
platform:(PTShareType)platform
fromViewController:(UIViewController*)fromViewController {
[PTWXRespManager sharedInstance].delegate = self;
BOOL shareResult = [PTWXRequestHandler sendMessageWithImage:image imageUrlString:nil urlString:urlString title:title text:text shareType:platform];
if (shareResult == NO) {
!self.shareResultBlock ?: self.shareResultBlock(PTShareTypeWechat, PTShareResultFailed, nil);
}
}
/**
第三方支付
@param payMethodType 支付平台
@param order 支付订单模型
@param paymentBlock 支付结果回调
*/
- (void)payWithPlateform:(PTPaymentMethodType)payMethodType order:(PTOrderModel*)order paymentBlock:(void (^)(BOOL result))paymentBlock {
self.paymentBlock = paymentBlock;
// 使用支付宝支付
[PTWXRespManager sharedInstance].delegate = self;
[PTWXRequestHandler payWithOrder:order];
}
@end

PTWXRequestHandler实现了具体的SDK调用以及其他的一些操作

//
//  PTWXRequestHandler.m
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import "PTWXRequestHandler.h"
#import <WXApi.h>
#import "PTWXRespManager.h"
#import "PTOrderModel.h"
#import "PTThirdPlatformConfigConst.h"
#import "UIImage+Util.h"
@implementation PTWXRequestHandler
+ (BOOL)sendAuthInViewController:(UIViewController *)viewController {
SendAuthReq* req = [[SendAuthReq alloc] init];
req.scope = kAuthScope;
req.state = kAuthOpenID;
req.openID = kAuthOpenID;
return [WXApi sendAuthReq:req
viewController:viewController
delegate:[PTWXRespManager sharedInstance]];
}
+ (BOOL)payWithOrder:(PTOrderModel *)order {
//调起微信支付
PayReq* req             = [[PayReq alloc] init];
req.partnerId           = order.partnerid;
req.prepayId            = order.prepayid;
req.nonceStr            = order.noncestr;
req.timeStamp           = order.timestamp;
req.package             = order.package;
req.sign                = order.sign;
BOOL result = [WXApi sendReq:req];
return result;
}
// 分享
+ (BOOL)sendMessageWithImage:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
urlString:(NSString*)urlString
title:(NSString*)title
text:(NSString*)text
shareType:(PTShareType)shareType {
enum WXScene wxScene = 0;
if (PTShareTypeWechat == shareType) {
wxScene = WXSceneSession;
} else if (PTShareTypeWechatLine == shareType) {
wxScene = WXSceneTimeline;
}
SendMessageToWXReq* req = [[SendMessageToWXReq alloc] init];
req.scene = wxScene;
req.bText = NO;
WXMediaMessage* msg = [[WXMediaMessage alloc] init];
msg.title = title;
msg.description = text;
[msg setThumbImage:[self scaledImageWithOriImage:image]];
if (urlString && urlString.length>0) {
WXWebpageObject* webPageObj = [[WXWebpageObject alloc] init];
webPageObj.webpageUrl = urlString;
msg.mediaObject = webPageObj;
}
req.message = msg;
BOOL result = [WXApi sendReq:req];
return result;
}
+ (UIImage*)scaledImageWithOriImage:(UIImage*)oriImage {
NSInteger maxSharedImageBytes = 32*1000;//32K
NSInteger oriImageBytes = UIImageJPEGRepresentation(oriImage, 1.0).length;
if (oriImageBytes > maxSharedImageBytes) {
CGFloat scaleFactor = maxSharedImageBytes * 1.0f / oriImageBytes * 1.0f;
UIImage* scaledImage = [oriImage scaletoScale:scaleFactor];
if (scaledImage) {
return scaledImage;
}
}
return oriImage;
}
@end

PTWXRespManager处理微信SDK的回调,并PTAbsThirdPlatformRespManagerDelegate代理把回调统一的传递给PTWXManager

//
//  PTWXRespManager.m
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import "PTWXRespManager.h"
#import "WXApi.h"
#import "NSData+NSJSON.h"
#import "PTThirdPlatformConfigConst.h"
#import "NetworkRequestUtil.h"
@implementation PTWXRespManager
DEF_SINGLETON
#pragma mark - WXApiDelegate
- (void)onResp:(BaseResp *)resp {
if ([resp isKindOfClass:[SendMessageToWXResp class]]) {
if (self.delegate
&& [self.delegate respondsToSelector:@selector(respManagerDidRecvMessageResponse:platform:)]) {
if (resp.errCode == WXSuccess) {
[self.delegate respManagerDidRecvMessageResponse:YES platform:PTShareTypeWechat];
} else {
[self.delegate respManagerDidRecvMessageResponse:NO platform:PTShareTypeWechat];
}
}
} else if ([resp isKindOfClass:[SendAuthResp class]]) {
if (resp.errCode == WXSuccess) {
// wx请求accessToken & openId
NSString *urlString = [NSString stringWithFormat:@"https://api.weixin.qq.com/sns/oauth2/access_token?appid=%@&secret=%@&code=%@&grant_type=authorization_code", kWXAppID, kWXAppSecret, ((SendAuthResp*)resp).code];
[NetworkRequestUtil requestWithURLString:urlString completionHandler:^(NSData * _Nullable data, NSURLResponse * _Nullable response, NSError * _Nullable error) {
NSDictionary *resultDict = [data nsjsonObject];
[self getUserInfoWithAccessToken:[resultDict objectForKey:@"access_token"] andOpenId:[resultDict objectForKey:@"openid"]];
}];
} else {
if (self.delegate
&& [self.delegate respondsToSelector:@selector(respManagerDidRecvAuthResponse:platform:)]) {
[self.delegate respManagerDidRecvAuthResponse:nil platform:PTThirdPlatformTypeWechat];
}
}
} else if([resp isKindOfClass:[PayResp class]]){
//支付返回结果,实际支付结果需要去微信服务器端查询
if (self.delegate
&& [self.delegate respondsToSelector:@selector(respManagerDidRecvPayResponse:platform:)]) {
[self.delegate respManagerDidRecvPayResponse:(resp.errCode == WXSuccess) platform:PaymentMethodTypeWechat];
}
}
}
//wx获取用户信息
- (void)getUserInfoWithAccessToken:(NSString *)accessToken andOpenId:(NSString *)openId{
NSString *urlString =[NSString stringWithFormat:@"https://api.weixin.qq.com/sns/userinfo?access_token=%@&openid=%@", accessToken, openId];
[NetworkRequestUtil requestWithURLString:urlString completionHandler:^(NSData * _Nullable data, NSURLResponse * _Nullable response, NSError * _Nullable error) {
NSDictionary *resultDict = [data nsjsonObject];
ThirdPlatformUserInfo* userInfo = [ThirdPlatformUserInfo new];
userInfo.userId = [resultDict objectForKey:@"unionid"];
userInfo.username = [resultDict objectForKey:@"nickname"];
userInfo.head = [resultDict objectForKey:@"headimgurl"];
userInfo.tokenString = accessToken;
PTOnMainThreadAsync(^{
if (self.delegate
&& [self.delegate respondsToSelector:@selector(respManagerDidRecvAuthResponse:platform:)]) {
[self.delegate respManagerDidRecvAuthResponse:userInfo platform:PTThirdPlatformTypeWechat];
}
});
}];
}
@end

不同平台的管理类,这部分是用户统一处理客户端的第三发平台功能调用的,因为不同的第三方平台有相同的接口,为了不和具体的第三方平台耦合,使用了类名字符串进行配置不同的平台,客户端只要使用这个类就可以和具体的第三方平台交互了。

//
//  PTThirdPlatformConfigManager.m
//  YTThirdPlatformManager
//
//  Created by aron on 2017/10/26.
//  Copyright © 2017年 aron. All rights reserved.
//
#import "PTThirdPlatformConfigManager.h"
#import "PTAbsThirdPlatformManager.h"
@implementation PTThirdPlatformConfigManager
DEF_SINGLETON
/**
第三方平台配置
*/
- (void)thirdPlatConfigWithApplication:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
for (NSString* classString in [self thirdPlatformManagerClasses]) {
id<PTAbsThirdPlatformManager> manager = [self managerFromClassString:classString];
if (manager && [manager conformsToProtocol:@protocol(PTAbsThirdPlatformManager)]) {
[manager thirdPlatConfigWithApplication:application didFinishLaunchingWithOptions:launchOptions];
}
}
}
/**
第三方平台处理URL
*/
- (BOOL)thirdPlatCanOpenUrlWithApplication:(UIApplication *)application
openURL:(NSURL *)url
sourceApplication:(NSString *)sourceApplication
annotation:(id)annotation {
for (NSString* classString in [self thirdPlatformManagerClasses]) {
id<PTAbsThirdPlatformManager> manager = [self managerFromClassString:classString];
if (manager && [manager conformsToProtocol:@protocol(PTAbsThirdPlatformManager)]) {
BOOL result = [manager thirdPlatCanOpenUrlWithApplication:application openURL:url sourceApplication:sourceApplication annotation:annotation];
if (result) {
return YES;
}
}
}
return NO;
}
/**
第三方登录
@param thirdPlatformType 第三方平台
@param fromViewController 从哪个页面调用的分享
@param callback 登录回调
*/
- (void)signInWithType:(PTThirdPlatformType)thirdPlatformType
fromViewController:(UIViewController *)viewController
callback:(void (^)(ThirdPlatformUserInfo* userInfo, NSError* err))callback {
NSString* classString = [[self thirdPlatformSigninManagerConfig] objectForKey:@(thirdPlatformType)];
id<PTAbsThirdPlatformManager> manager = [self managerFromClassString:classString];
[manager signInWithType:thirdPlatformType
fromViewController:viewController
callback:callback];
}
/**
第三方分享
@param platform 第三方分享平台
@param image 分享的图片
@param imageUrlString 分享的图片地址
@param title 分享的标题
@param text 分享的文字
@param urlString 分享的URL
@param fromViewController 从哪个页面调用的分享
@param shareResultBlock 分享结果回调
*/
- (void)shareToPlateform:(PTShareType)platform
image:(UIImage*)image
imageUrlString:(NSString*)imageUrlString
title:(NSString*)title
text:(NSString*)text
urlString:(NSString*)urlString
fromViewController:(UIViewController*)fromViewController
shareResultBlock:(void (^) (PTShareType platform, PTShareResult shareResult, NSError* error))shareResultBlock {
NSString* classString = [[self thirdPlatformShareManagerConfig] objectForKey:@(platform)];
id<PTAbsThirdPlatformManager> manager = [self managerFromClassString:classString];
[manager shareToPlateform:platform
image:image
imageUrlString:imageUrlString
title:title
text:text
urlString:urlString
fromViewController:fromViewController
shareResultBlock:shareResultBlock];
}
/**
第三方支付
@param payMethodType 支付平台
@param order 支付订单模型
@param paymentBlock 支付结果回调
*/
- (void)payWithPlateform:(PTPaymentMethodType)payMethodType order:(PTOrderModel*)order paymentBlock:(void (^)(BOOL result))paymentBlock {
NSString* classString = [[self thirdPlatformPayManagerConfig] objectForKey:@(payMethodType)];
id<PTAbsThirdPlatformManager> manager = [self managerFromClassString:classString];
[manager payWithPlateform:payMethodType
order:order
paymentBlock:paymentBlock];
}
- (id)managerFromClassString:(NSString*)classString {
if (classString == nil || classString.length == 0) {
return nil;
}
Class clz = NSClassFromString(classString);
SEL sharedInstanceSelector = @selector(sharedInstance);
id<PTAbsThirdPlatformManager> manager = nil;
if(clz && [clz respondsToSelector:sharedInstanceSelector]){
manager = [clz performSelector:sharedInstanceSelector];
}
return manager;
}
- (NSArray*)thirdPlatformManagerClasses {
return @[@"PTAlipayManager",
@"PTTencentManager",
@"PTWeiboManager",
@"PTWXManager",
];
}
- (NSDictionary*)thirdPlatformSigninManagerConfig {
return @{
@(PTThirdPlatformTypeWechat): @"PTWXManager",
@(PTThirdPlatformTypeTencentQQ): @"PTTencentManager",
@(PTThirdPlatformTypeWeibo): @"PTWeiboManager"
};
}
- (NSDictionary*)thirdPlatformPayManagerConfig {
return @{
@(PaymentMethodTypeWechat): @"PTWXManager",
@(PaymentMethodTypeAlipay): @"PTAlipayManager"
};
}
- (NSDictionary*)thirdPlatformShareManagerConfig {
return @{
@(PaymentMethodTypeWechat): @"PTWXManager",
@(PTShareTypeWechatLine): @"PTWXManager",
@(PTShareTypeQQ): @"PTTencentManager",
@(PTShareTypeQQZone): @"PTTencentManager",
@(PTShareTypeWeibo): @"PTWeiboManager",
};
}
@end

One More Thing

刚刚学设计模式,有疏漏的地方请各位看官不吝赐教

人已赞赏
iOS文章

iOS模式解析单例模式

2020-4-28 1:01:58

iOS文章

iOS KVO 中 runtime 探究

2020-4-28 2:16:49

个人中心
购物车
优惠劵
今日签到
有新私信 私信列表
有新消息 消息中心
搜索
