iOS图片浏览器

释放双眼,带上耳机,听听看~!





一直想写一个自己的图片浏览器,但是自己能力又不是很够,所以一直拖这,最近趁自己时间充裕,自己研究了一下这方面的知识。感觉有以下几个难点:

  1. 显示和消失的转场动画
  2. 手势拖拽
  3. 图片加载

加载方式和转场动画

  • 通过Controller加载:需要使用ViewController实现UIViewControllerAnimatedTransitioning实现转场效果
  • 通过View加载:使用UIView动画试下转场效果

转场动画必要元素

  1. 显示时需要fromViewframe
  2. 消失时需要toViewframe

显示

通过修改当前需要显示图片的CollectionViewCellImageViewframe,同时修改当期View的背景颜色透明度

WDImageCollectionViewCell *cell = (WDImageCollectionViewCell *)[self.collectionView cellForItemAtIndexPath:[NSIndexPath indexPathForRow:self.tappedIndex inSection:0]];
CGRect fromFrame                = [self.originView convertRect:self.originView.bounds toView:cell.contentView];
cell.imageView.frame            = fromFrame;
[UIView animateWithDuration:0.5 animations:^{
self.backgroundColor = [[UIColor alloc] initWithWhite:0 alpha:1];
cell.imageView.frame = cell.contentView.bounds;
}];

消失

原理与显示相同

CGRect toRect = [self.originView convertRect:self.originView.bounds toView:self.window];
[UIView animateWithDuration:0.5 animations:^{
cell.imageView.clipsToBounds = YES;
cell.imageView.frame         = toRect;
self.backgroundColor         = [[UIColor alloc] initWithWhite:0 alpha:0];
} completion:^(BOOL finished) {
[self removeFromSuperview];
}];

拖拽的手势

将手势添加在CollectionViewCellScrollView上,并遵循UIGestureRecognizerDelegate协议,不然会CollectionView无法进行滚动操作。

  1. 声明一个全局属性
CGPoint firstTouchPoint;
  1. 实现代理
#pragma mark - UIGestureRecognizer Delegate Method
- (BOOL)gestureRecognizer:(UIGestureRecognizer *)gestureRecognizer shouldReceiveTouch:(UITouch *)touch {
firstTouchPoint = [touch locationInView:self.window];
return YES;
}
- (BOOL)gestureRecognizerShouldBegin:(UIGestureRecognizer *)gestureRecognizer {
CGPoint touchPoint = [gestureRecognizer locationInView:self.window];
CGFloat dirTop = firstTouchPoint.y - touchPoint.y;
if (dirTop > -10 && dirTop < 10) {
return NO;
}
CGFloat dirLift = firstTouchPoint.x - touchPoint.x;
if (dirLift > -10 && dirLift < 10 && self.scrollView.frame.size.height > [[UIScreen mainScreen] bounds].size.height) {
return NO;
}
return YES;
}
  1. 拖动手势操作,同意代理传给View
  • 协议方法
@class WDImageCollectionViewCell;
@protocol WDImageCollectionViewCellDelegate <NSObject>
- (void)collectionViewCell:(WDImageCollectionViewCell *)cell singleTapActionWithImageUrl:(NSString *)imageUrl;
- (void)collectionViewCell:(WDImageCollectionViewCell *)cell panActionWithPercent:(CGFloat)percent;
- (void)collectionViewCell:(WDImageCollectionViewCell *)cell dimssViewWithImageUrl:(NSString *)imageUrl;
@end
  • 拖动手势方法
#pragma mark - UIGestureRecognizer Target Event
/** 滑动手势 */
- (void)didRecognizedPanGuesture:(UIPanGestureRecognizer *)pan {
CGPoint point = [pan translationInView:self.window];
CGFloat scale = 1.0 - ABS(point.y) / [[UIScreen mainScreen] bounds].size.height;
switch (pan.state) {
case UIGestureRecognizerStateBegan: {}
break;
case UIGestureRecognizerStateChanged:
{
scale = MAX(scale, 0);
CGFloat s = MAX(scale, 0.5);
CGAffineTransform translation = CGAffineTransformMakeTranslation(point.x / s, point.y / s);
CGAffineTransform translationScale = CGAffineTransformMakeScale(s, s);
self.imageView.transform = CGAffineTransformConcat(translation, translationScale);
// 传出translationScale,修改背景颜色透明度
if (self.delegate && [self.delegate respondsToSelector:@selector(collectionViewCell:panActionWithPercent:)]) {
[self.delegate collectionViewCell:self panActionWithPercent:scale];
}
}
break;
case  UIGestureRecognizerStateCancelled | UIGestureRecognizerStateFailed:
{
self.imageView.transform = CGAffineTransformIdentity;
// 回复初始样式,传出translationScale,修改背景颜色透明度
if (self.delegate && [self.delegate respondsToSelector:@selector(collectionViewCell:panActionWithPercent:)]) {
[self.delegate collectionViewCell:self panActionWithPercent:1];
}
}
break;
case UIGestureRecognizerStateEnded:
{
[UIView animateWithDuration:0.5 animations:^{
CGAffineTransform transform1 = CGAffineTransformMakeTranslation(0,0);
self.imageView.transform = CGAffineTransformScale(transform1, 1, 1);
}];
// 回复初始样式,传出translationScale,修改背景颜色透明度
if (self.delegate && [self.delegate respondsToSelector:@selector(collectionViewCell:panActionWithPercent:)]) {
[self.delegate collectionViewCell:self panActionWithPercent:scale];
}
if (scale < 0.7) {
// 拖动结束,让页面消失
if (self.delegate && [self.delegate respondsToSelector:@selector(collectionViewCell:dimssViewWithImageUrl:)]) {
[self.delegate collectionViewCell:self dimssViewWithImageUrl:self.imageUrl];
}
} else {
// 回复初始样式,传出translationScale,修改背景颜色透明度
if (self.delegate && [self.delegate respondsToSelector:@selector(collectionViewCell:panActionWithPercent:)]) {
[self.delegate collectionViewCell:self panActionWithPercent:1];
}
}
}
break;
default:
break;
}
}

图片加载

使用SDWebImage获取图片,通过FLAnimatedImageView加载gif

Github地址

项目地址

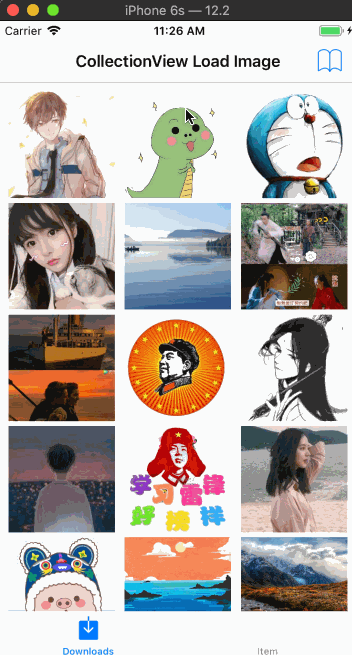

效果图
