iOS xib上的控件自动生成纯代码(Masonry篇)

释放双眼,带上耳机,听听看~!

之前写了一篇iOS xib上的控件自动生成纯代码

这篇只是单纯的生成了控件简单代码,很多朋友说不能满足需求呀,因为之前代码因系统崩了,源码不见了,重写写了一份Masonry篇,此篇虽然为Masonry布局,但是主要还是需要自己改动,这个只是为了减少手动敲代码来布局,不能完全依靠生成的代码进行直接使用。

此次改进只要针对代码的可辨识度,并生成完成的.m所有代码逻辑

分为 #import “ViewController.h”

@property 属性

viewDidLoad

构建视图方法buildView

masonry布局  masonryLayout 此方法内的布局 自行调节

懒加载

使用

1.将动态库直接拖进工程

2.在ViewController导入

#import <XibToCideMasonry/CodeJoiningTogether.h>

#import <XibToCideMasonry/UIView+Attribute.h>  注意 如果不导入该扩展文件 xib中将没有objectName 选项

3. 添加 -ObjC

4.在 viewDidLoad 调用方法

[CodeJoiningTogether codeJoiningTogetherClass:self];

注意 :

每添加一个控件都要填写objectName 名称  这个也是@property(nonatomic,strong) UIImageView * testImage;的对象名

运行

桌面会生成

Demo 下载地址 GitHub传送 觉得对你有所帮助,给颗星星,谢谢。。

完整的代码

作者:Sephiroth_Ma
链接:https://www.jianshu.com/p/2fece517070f
来源:简书
著作权归作者所有。商业转载请联系作者获得授权,非商业转载请注明出处。

#import "ViewController.h"

 #define COLOR_WITH_HEX(hexValue) [UIColor colorWithRed:((float)((hexValue &0xFF0000) >>16)) /255.0green:((float)((hexValue &0xFF00) >>8)) /255.0blue:((float)(hexValue &0xFF)) /255.0alpha:1.0f]

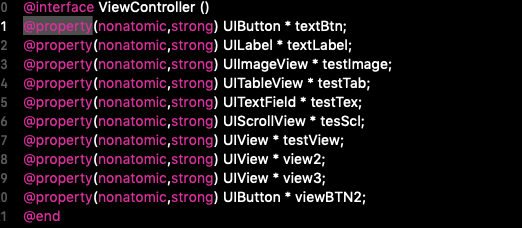

@interfaceViewController ()

@property(nonatomic,strong) UIButton * textBtn;

@property(nonatomic,strong) UILabel * textLabel;

@property(nonatomic,strong) UIImageView * testImage;

@property(nonatomic,strong) UITableView * testTab;

@property(nonatomic,strong) UITextField * testTex;

@property(nonatomic,strong) UIScrollView * tesScl;

@property(nonatomic,strong) UIView * testView;

@property(nonatomic,strong) UIView * view2;

@property(nonatomic,strong) UIView * view3;

@property(nonatomic,strong) UIButton * viewBTN2;

@end

@implementationViewController

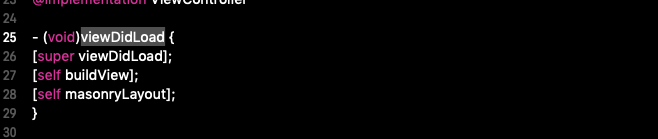

- (void)viewDidLoad {

[superviewDidLoad];

[selfbuildView];

[selfmasonryLayout];

}

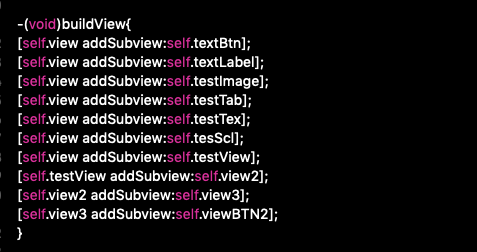

-(void)buildView{

[self.view addSubview:self.textBtn];

[self.view addSubview:self.textLabel];

[self.view addSubview:self.testImage];

[self.view addSubview:self.testTab];

[self.view addSubview:self.testTex];

[self.view addSubview:self.tesScl];

[self.view addSubview:self.testView];

[self.testView addSubview:self.view2];

[self.view2 addSubview:self.view3];

[self.view3 addSubview:self.viewBTN2];

}

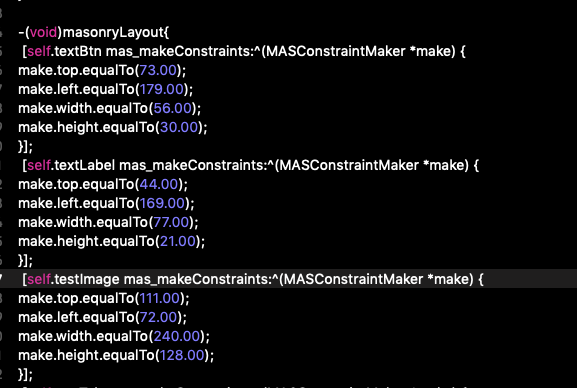

-(void)masonryLayout{

 [self.textBtn mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(73.00);

make.left.equalTo(179.00);

make.width.equalTo(56.00);

make.height.equalTo(30.00);

}];

 [self.textLabel mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(44.00);

make.left.equalTo(169.00);

make.width.equalTo(77.00);

make.height.equalTo(21.00);

}];

 [self.testImage mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(111.00);

make.left.equalTo(72.00);

make.width.equalTo(240.00);

make.height.equalTo(128.00);

}];

 [self.testTab mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(247.00);

make.left.equalTo(72.00);

make.width.equalTo(240.00);

make.height.equalTo(128.00);

}];

 [self.testTex mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(413.00);

make.left.equalTo(138.00);

make.width.equalTo(97.00);

make.height.equalTo(30.00);

}];

 [self.tesScl mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(409.00);

make.left.equalTo(278.00);

make.width.equalTo(90.00);

make.height.equalTo(39.00);

}];

 [self.testView mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(560.00);

make.left.equalTo(83.00);

make.width.equalTo(311.00);

make.height.equalTo(266.00);

}];

 [self.view2 mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(18.00);

make.left.equalTo(11.00);

make.width.equalTo(278.00);

make.height.equalTo(204.00);

}];

 [self.view3 mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(38.00);

make.left.equalTo(19.00);

make.width.equalTo(240.00);

make.height.equalTo(128.00);

}];

 [self.viewBTN2 mas_makeConstraints:^(MASConstraintMaker *make) {

make.top.equalTo(49.00);

make.left.equalTo(82.00);

make.width.equalTo(46.00);

make.height.equalTo(30.00);

}];

}

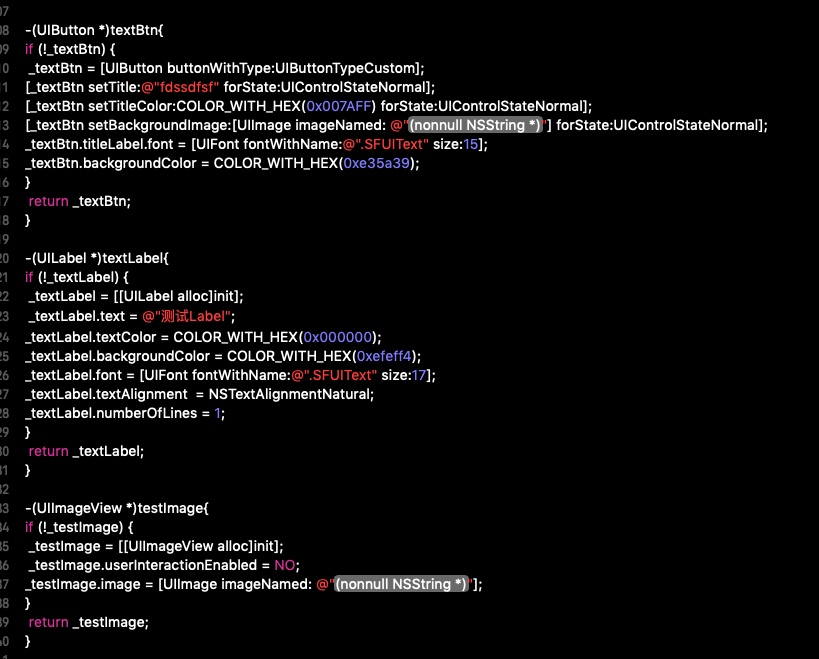

-(UIButton *)textBtn{

if(!_textBtn) {

 _textBtn = [UIButton buttonWithType:UIButtonTypeCustom];

[_textBtn setTitle:@"fdssdfsf"forState:UIControlStateNormal];

[_textBtn setTitleColor:COLOR_WITH_HEX(0x007AFF) forState:UIControlStateNormal];

[_textBtn setBackgroundImage:[UIImage imageNamed:@"<#(nonnull NSString *)#>"] forState:UIControlStateNormal];

_textBtn.titleLabel.font = [UIFont fontWithName:@".SFUIText"size:15];

_textBtn.backgroundColor = COLOR_WITH_HEX(0xe35a39);

}

 return_textBtn;

}

-(UILabel *)textLabel{

if(!_textLabel) {

 _textLabel = [[UILabel alloc]init];

 _textLabel.text =@"测试Label";

_textLabel.textColor = COLOR_WITH_HEX(0x000000);

_textLabel.backgroundColor = COLOR_WITH_HEX(0xefeff4);

_textLabel.font = [UIFont fontWithName:@".SFUIText"size:17];

_textLabel.textAlignment  = NSTextAlignmentNatural;

_textLabel.numberOfLines =1;

}

 return_textLabel;

}

-(UIImageView *)testImage{

if(!_testImage) {

 _testImage = [[UIImageView alloc]init];

 _testImage.userInteractionEnabled =NO;

_testImage.image = [UIImage imageNamed:@"<#(nonnull NSString *)#>"];

}

 return_testImage;

}

-(UITableView *)testTab{

if(!_testTab) {

_testTab = [[UITableView alloc]initWithFrame:CGRectZero style:UITableViewStylePlain];

_testTab.rowHeight = -1.00;

_testTab.delegate =self;

_testTab.dataSource =self;

}

 return_testTab;

}

-(UITextField *)testTex{

if(!_testTex) {

 _testTex = [[UITextField alloc]init];

 _testTex.borderStyle = UITextBorderStyleRoundedRect;

_testTex.textColor  = COLOR_WITH_HEX(0x000000);

_testTex.backgroundColor = [UIColor clearColor];

_testTex.font = [UIFont fontWithName:@".SFUIText"size:14];

_testTex.textAlignment = NSTextAlignmentNatural;

_testTex.placeholder = @"<#(nonnull NSString *)#>";

_testTex.secureTextEntry =NO;

_testTex.autocorrectionType = UITextAutocorrectionTypeDefault;

_testTex.keyboardType = UIKeyboardTypeDefault;

_testTex.returnKeyType = UIReturnKeyDefault;

}

 return_testTex;

}

-(UIScrollView *)tesScl{

if(!_tesScl) {

 _tesScl = [[UIScrollView alloc]init];

_tesScl.backgroundColor = [UIColor clearColor];

_tesScl.showsHorizontalScrollIndicator  =YES;

_tesScl.showsVerticalScrollIndicator  =YES;

}

 return_tesScl;

}

-(UIView *)testView{

if(!_testView) {

 _testView = [[UIView alloc]init];

_testView.backgroundColor = COLOR_WITH_HEX(0x000000);

}

 return_testView;

}

-(UIView *)view2{

if(!_view2) {

 _view2 = [[UIView alloc]init];

_view2.backgroundColor = COLOR_WITH_HEX(0xaaaaaa);

}

 return_view2;

}

-(UIView *)view3{

if(!_view3) {

 _view3 = [[UIView alloc]init];

_view3.backgroundColor = COLOR_WITH_HEX(0xffffff);

}

 return_view3;

}

-(UIButton *)viewBTN2{

if(!_viewBTN2) {

 _viewBTN2 = [UIButton buttonWithType:UIButtonTypeCustom];

[_viewBTN2 setTitle:@"Button"forState:UIControlStateNormal];

[_viewBTN2 setTitleColor:COLOR_WITH_HEX(0x007AFF) forState:UIControlStateNormal];

[_viewBTN2 setBackgroundImage:[UIImage imageNamed:@"<#(nonnull NSString *)#>"] forState:UIControlStateNormal];

_viewBTN2.titleLabel.font = [UIFont fontWithName:@".SFUIText"size:15];

_viewBTN2.backgroundColor = [UIColor clearColor];

}

 return_viewBTN2;

}

@end
