Android开发仿华为LoadingView

释放双眼,带上耳机,听听看~!

介绍

最近留意到华为手机预装的全家桶软件中,全都采用了统一的一个加载控件(如下图),觉得挺好看,然后就想着自己搞下。

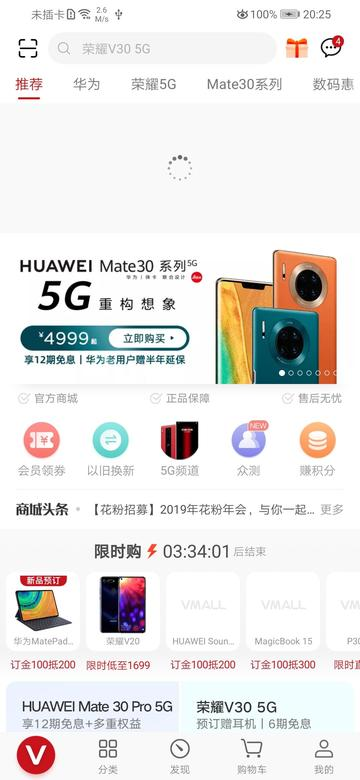

华为商城

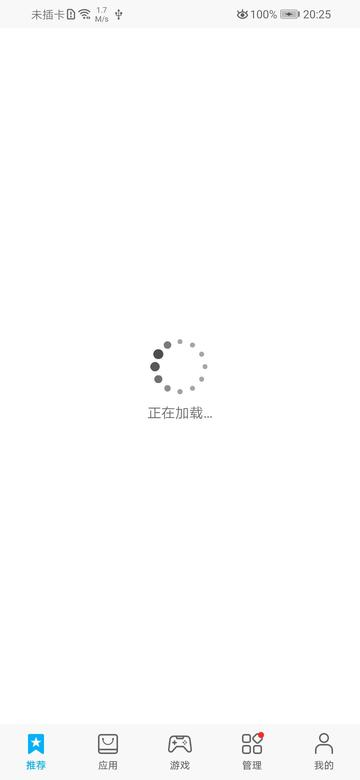

应用市场

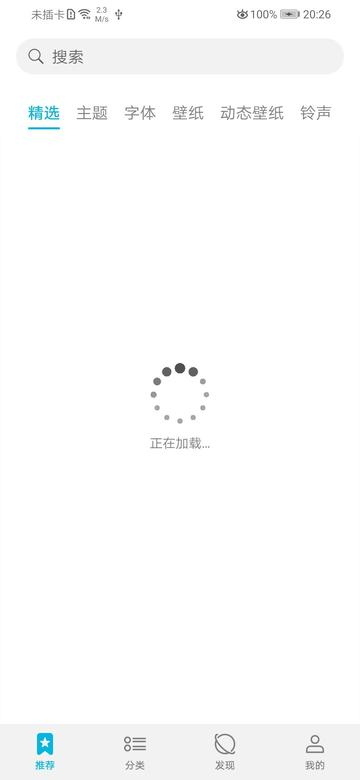

主题

实现

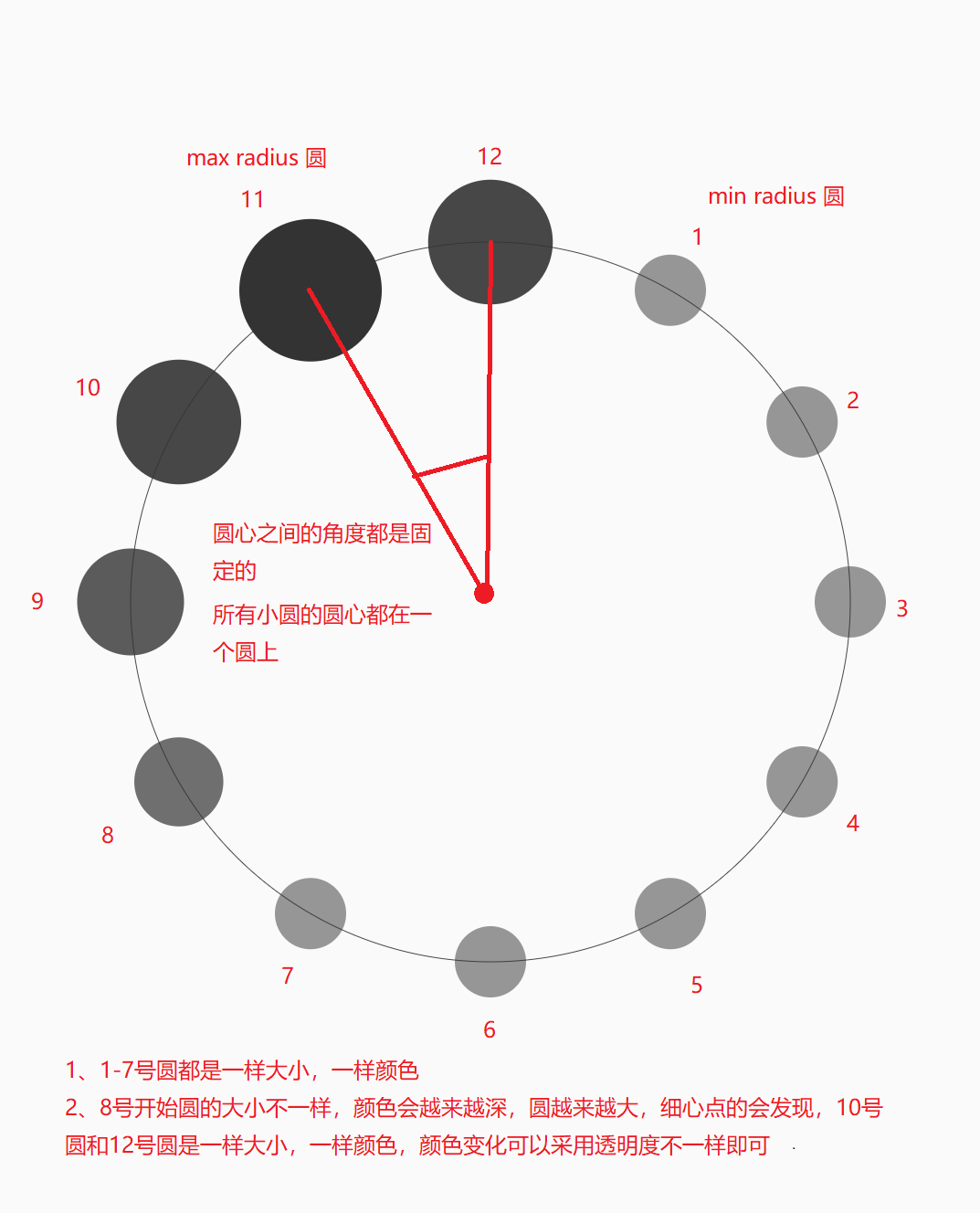

1、分析





2、自定义属性

   <declare-styleable name="HwLoadingView">
<!--控件大小-->
<attr name="hlv_size" format="dimension" />
<!--控件颜色-->
<attr name="hlv_color" format="color" />
<!--转一圈花费时长-->
<attr name="hlv_duration" format="integer"/>
</declare-styleable>

3、源码

public class HwLoadingView extends View {
private static final int CIRCLE_COUNT = 12;  //小圆总数
private static final int DEGREE_PER_CIRCLE = 360 / CIRCLE_COUNT;  //小圆圆心之间间隔角度差
private float[] mWholeCircleRadius = new float[CIRCLE_COUNT];  //记录所有小圆半径
private int[] mWholeCircleColors = new int[CIRCLE_COUNT]; //记录所有小圆颜色
private float mMaxCircleRadius;   //小圆最大半径
private int mSize;     //控件大小
private int mColor;    //小圆颜色
private Paint mPaint; //画笔
private ValueAnimator mAnimator;
private int mAnimateValue = 0;
private long mDuration;   //动画时长
public HwLoadingView(Context context) {
this(context, null);
}
public HwLoadingView(Context context, @Nullable AttributeSet attrs) {
this(context, attrs, 0);
}
public HwLoadingView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
initAttrs(context, attrs);
initPaint();
initValue();
}
/**
* 初始化自定义属性
*/
private void initAttrs(Context context, AttributeSet attrs) {
TypedArray ta = context.obtainStyledAttributes(attrs, R.styleable.HwLoadingView);
mSize = (int) ta.getDimension(R.styleable.HwLoadingView_hlv_size, dp2px(context, 100));
setSize(mSize);
mColor = ta.getColor(R.styleable.HwLoadingView_hlv_color, Color.parseColor("#333333"));
setColor(mColor);
mDuration = ta.getInt(R.styleable.HwLoadingView_hlv_duration, 1500);
ta.recycle();
}
/**
* 初始化画笔
*/
private void initPaint() {
mPaint = new Paint();
mPaint.setAntiAlias(true);
mPaint.setStyle(Paint.Style.FILL);
mPaint.setColor(mColor);
}
/**
* 初始化所有小圆半径、颜色
*/
private void initValue() {
float minCircleRadius = mSize / 24;
for (int i = 0; i < CIRCLE_COUNT; i++) {
switch (i) {
case 7:
mWholeCircleRadius[i] = minCircleRadius * 1.25f;
mWholeCircleColors[i] = (int) (255 * 0.7f);
break;
case 8:
mWholeCircleRadius[i] = minCircleRadius * 1.5f;
mWholeCircleColors[i] = (int) (255 * 0.8f);
break;
case 9:
case 11:
mWholeCircleRadius[i] = minCircleRadius * 1.75f;
mWholeCircleColors[i] = (int) (255 * 0.9f);
break;
case 10:
mWholeCircleRadius[i] = minCircleRadius * 2f;
mWholeCircleColors[i] = 255;
break;
default:
mWholeCircleRadius[i] = minCircleRadius;
mWholeCircleColors[i] = (int) (255 * 0.5f);
break;
}
}
mMaxCircleRadius = minCircleRadius * 2;
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
//去除wrap_content、Match_Parent对控件的影响
setMeasuredDimension(mSize, mSize);
}
@Override
protected void onDraw(Canvas canvas) {
if (mSize > 0) {
//每隔DEGREE_PER_CIRCLE * mAnimateValue角度,绘制所有小圆
canvas.rotate(DEGREE_PER_CIRCLE * mAnimateValue, mSize / 2, mSize / 2);
for (int i = 0; i < CIRCLE_COUNT; i++) {
//设置小圆颜色
mPaint.setAlpha(mWholeCircleColors[i]);
//每隔DEGREE_PER_CIRCLE角度,绘制一个小圆
canvas.drawCircle(mSize / 2, mMaxCircleRadius, mWholeCircleRadius[i], mPaint);
canvas.rotate(DEGREE_PER_CIRCLE, mSize / 2, mSize / 2);
}
}
}
/**
* 设置控件大小
*/
public void setSize(int size) {
mSize = size;
invalidate();
}
/**
* 设置小圆颜色
*/
public void setColor(@ColorInt int color) {
mColor = color;
invalidate();
}
/**
* 动画监听
*/
private ValueAnimator.AnimatorUpdateListener mUpdateListener = new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
mAnimateValue = (int) animation.getAnimatedValue();
invalidate();
}
};
/**
* 开始动画
*/
public void start() {
if (mAnimator == null) {
mAnimator = ValueAnimator.ofInt(0, CIRCLE_COUNT - 1);
mAnimator.addUpdateListener(mUpdateListener);
mAnimator.setDuration(mDuration);
mAnimator.setRepeatMode(ValueAnimator.RESTART);
mAnimator.setRepeatCount(ValueAnimator.INFINITE);
mAnimator.setInterpolator(new LinearInterpolator());
mAnimator.start();
} else if (!mAnimator.isStarted()) {
mAnimator.start();
}
}
/**
* 停止动画
*/
public void stop() {
if (mAnimator != null) {
mAnimator.removeUpdateListener(mUpdateListener);
mAnimator.removeAllUpdateListeners();
mAnimator.cancel();
mAnimator = null;
}
}
/**
* View依附Window时停止动画
*/
@Override
protected void onAttachedToWindow() {
super.onAttachedToWindow();
start();
}
/**
* View脱离Window时停止动画
*/
@Override
protected void onDetachedFromWindow() {
super.onDetachedFromWindow();
stop();
}
/**
* 根据View可见性变化开始/停止动画
*/
@Override
protected void onVisibilityChanged(@NonNull View changedView, int visibility) {
super.onVisibilityChanged(changedView, visibility);
if (visibility == VISIBLE) {
start();
} else {
stop();
}
}
/**
* dp转px
*/
private int dp2px(Context context, float dp) {
float density = context.getResources().getDisplayMetrics().density;
return (int) (density * dp + 0.5f);
}
}

使用

<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<com.mk.hwloadingbar.HwLoadingView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:hlv_color="@color/colorAccent"
app:hlv_size="360dp"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintRight_toRightOf="parent"
app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>

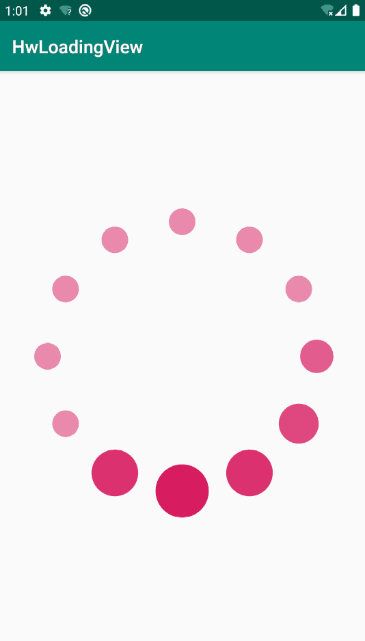

最终效果图如下
