iOS 多个视图在同一个controller上面的滑动

特别声明:文章多为网络转载,资源使用一般不提供任何帮助,特殊资源除外,如有侵权请联系!

iOS 多个视图在同一个controller上面的滑动

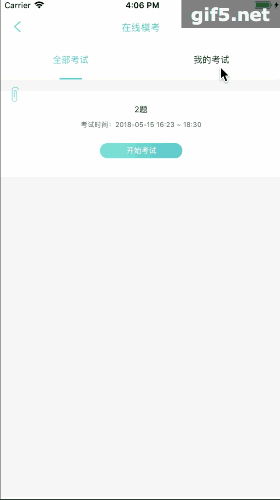

实现这样的效果,
代码如下。
两个文件。

SlidingHeadView.h

#import <UIKit/UIKit.h>

@interface SlidingHeadView : UIView<UIScrollViewDelegate>

@property (nonatomic ,copy) NSArray * titlesArr;

-(void) setSlideHeadView;

-(void) addChildrenViewController:(UIViewController *)childrenVC;

@end

SlidingHeadView.m

#import "SlidingHeadView.h"
#import "BaseViewController.h"

@interface SlidingHeadView ()

@property(nonatomic,strong) UIButton *currentSeletedButton;
@property(nonatomic,strong) UIView *titlesView;
@property(nonatomic,strong) UIView *lineView;
@property(nonatomic,strong) UIScrollView *contentScrollView;

@end

@implementation SlidingHeadView

-(void) setSlideHeadView {
    [self setupTopTitlesViews];
    [self setupScrollV];
}

-(void) addChildrenViewController:(UIViewController *)childrenVC {
    BaseViewController *superVC = [self findViewController:self];
    [superVC addChildViewController:childrenVC];
}

-(void) setupTopTitlesViews {
    self.titlesView = [[UIView alloc] initWithFrame:CGRectMake(0, 0, self.width, 50 *SCALE_WIDTH)];
    self.titlesView.backgroundColor = [UIColor whiteColor];
    [self addSubview:self.titlesView];

    UIView *lineV = [[UIView alloc] init];
    lineV.backgroundColor = GREEN_COLOR;
    lineV.height = 2 *SCALE_WIDTH;

    lineV.y = 48 *SCALE_WIDTH;
    [self.titlesView addSubview:lineV];
    self.lineView = lineV;

    for (NSInteger i = 0; i < _titlesArr.count; i++) {

        UIButton *btn = [[UIButton alloc] init];
        btn.frame = CGRectMake(i*self.width/_titlesArr.count, 0, self.width/_titlesArr.count, 48 *SCALE_WIDTH);
        btn.tag = i;
        [btn setTitle:_titlesArr[i] forState:UIControlStateNormal];
        [btn setTitleColor:DARK_FONT_COLOR forState:UIControlStateNormal];
        [btn setTitleColor:GREEN_COLOR forState:UIControlStateDisabled];
        btn.titleLabel.font = [UIFont systemFontOfSize:13.0f];
        [btn addTarget:self action:@selector(titleClick:) forControlEvents:UIControlEventTouchUpInside];
        [self.titlesView addSubview:btn];

        if (i == 0) {
            btn.enabled = NO;
            self.currentSeletedButton = btn;
            [btn.titleLabel sizeToFit];
            self.lineView.width = 30 *SCALE_WIDTH;
            self.lineView.centerX = btn.centerX;
        }
    }

    UILabel *smallLab = [[UILabel alloc] initWithFrame:CGRectMake(0, 2, self.width, 0.1)];
    [self addSubview:smallLab];
    [self.titlesView addSubview:lineV];

}

-(void) setupScrollV {
    self.contentScrollView = [[UIScrollView alloc] init];

    if (KISIPHONEX) {
        _contentScrollView.frame = CGRectMake(0, 50 *SCALE_WIDTH, self.width, self.height - (50 + 61 + 50) *SCALE_WIDTH);
    } else {
        _contentScrollView.frame = CGRectMake(0, 50 *SCALE_WIDTH, self.width, self.height - (50 + 61) *SCALE_WIDTH);
    }

    self.contentScrollView.contentSize = CGSizeMake(_titlesArr.count * self.width, 0);
    self.contentScrollView.contentOffset = CGPointMake(0, 0);
    self.contentScrollView.showsHorizontalScrollIndicator  = NO;
    self.contentScrollView.pagingEnabled = YES;
    self.contentScrollView.delegate = self;
    self.contentScrollView.bounces = NO;
    [self scrollViewDidEndScrollingAnimation:self.contentScrollView];
    self.contentScrollView.backgroundColor = BACKGROUND_COLOR;
    [self addSubview:self.contentScrollView];
}

-(void)titleClick:(UIButton *)button {
    self.currentSeletedButton.enabled = YES;
    button.enabled = NO;
    self.currentSeletedButton = button;

    [UIView animateWithDuration:0.25 animations:^{
        self.lineView.width = 30 *SCALE_WIDTH;
        self.lineView.centerX = button.centerX;
    }];

    CGPoint offset = self.contentScrollView.contentOffset;
    offset.x = button.tag *self.contentScrollView.width;
    [self.contentScrollView setContentOffset:offset animated:YES];
}

-(void)scrollViewDidEndScrollingAnimation:(UIScrollView *)scrollView {

    NSInteger index = scrollView.contentOffset.x/scrollView.width;
    BaseViewController *superVC = [self findViewController:self];
    BaseViewController *vc = superVC. childViewControllers[index];
    vc.view.x = scrollView.contentOffset.x;
    vc.view.y = 0;
    vc.view.height = scrollView.height;
    vc.view.width = scrollView.width;
    [scrollView addSubview:vc.view];
}

-(void)scrollViewDidEndDecelerating:(UIScrollView *)scrollView {
    [self scrollViewDidEndScrollingAnimation:scrollView];
    NSInteger index = scrollView.contentOffset.x / scrollView.width;
    [self titleClick:self.titlesView.subviews[index]];
}

- (BaseViewController *)findViewController:(UIView *)sourceView {
    id target = sourceView;
    while (target) {
        target = ((UIResponder *)target).nextResponder;
        if ([target isKindOfClass:[BaseViewController class]]) {
            break;
        }
    }
    return target;
}

@end

SliderView.h

#import <UIKit/UIKit.h>

@interface SliderView : UIView<UIScrollViewDelegate>

/** 文字scrollView  */
@property (nonatomic, strong) UIScrollView *titleScrollView;
/** 控制器scrollView  */
@property (nonatomic, strong) UIScrollView *contentScrollView;
/** 标签文字  */
@property (nonatomic ,copy) NSArray * titlesArr;
/** 标签按钮  */
@property (nonatomic, strong) NSMutableArray *buttons;
/** 选中的按钮  */
@property (nonatomic ,strong) UIButton * selectedBtn;
/** 选中的按钮背景图  */
@property (nonatomic ,strong) UIImageView * imageBackView;

-(void)setSlideHeadView;

-(void)addChildViewController:(UIViewController *)childVC title:(NSString *)vcTitle;

@end

SliderView.m

#import "SliderView.h"

@implementation SliderView

static CGFloat const titleH = 44;/** 文字高度  */
static CGFloat const MaxScale = 1.2;/** 选中文字放大  */

- (NSMutableArray *)buttons {
    if (!_buttons) {
        _buttons = [NSMutableArray array];
    }
    return _buttons;
}

-(id)init{
    if (self = [super init]) {

    }
    return self;
}

-(void)setSlideHeadView{

    [_titleScrollView removeFromSuperview];

    [self setTitleScrollView];        /** 添加文字标签  */
    [self setContentScrollView];      /** 添加scrollView  */
    [self setupTitle];                /** 设置标签按钮 文字 背景图  */

    self.contentScrollView.contentSize = CGSizeMake(self.titlesArr.count * SCREEN_WIDTH, 0);
    self.contentScrollView.pagingEnabled = YES;
    self.contentScrollView.showsHorizontalScrollIndicator  = NO;
    self.contentScrollView.delegate = self;
    self.contentScrollView.bounces = NO;

}

- (UIViewController *)findViewController:(UIView *)sourceView {
    id target = sourceView;
    while (target) {
        target = ((UIResponder *)target).nextResponder;
        if ([target isKindOfClass:[UIViewController class]]) {
            break;
        }
    }
    return target;
}

#pragma mark - PRIVATE
-(void)addChildViewController:(UIViewController *)childVC title:(NSString *)vcTitle{
    UIViewController *superVC = [self findViewController:self];
    childVC.title = vcTitle;
    [superVC addChildViewController:childVC];
}

-(void)setTitleScrollView{
    UIViewController *superVC = [self findViewController:self];
    [self.titleScrollView removeAllSubviews];
    self.titleScrollView = nil;
    CGRect rect  = CGRectMake(0, 0, SCREEN_WIDTH, titleH);
    self.titleScrollView = [[UIScrollView alloc] initWithFrame:rect];
    [superVC.view addSubview:self.titleScrollView];
}

-(void)setContentScrollView{

    UIViewController *superVC = [self findViewController:self];
    [self.contentScrollView removeAllSubviews];
    self.contentScrollView = nil;
    CGFloat y  = CGRectGetMaxY(self.titleScrollView.frame);
    CGRect rect  = CGRectMake(0, y, SCREEN_WIDTH, SCREEN_HEIGHT - (titleH + 180) *SCALE_WIDTH);
    if (KISIPHONEX) {
        rect = CGRectMake(0, y, SCREEN_WIDTH, SCREEN_HEIGHT - (titleH + 180+50) *SCALE_WIDTH);
    }
    self.contentScrollView = [[UIScrollView alloc] initWithFrame:rect];
    [superVC.view addSubview:self.contentScrollView];
}

-(void)setupTitle{

    UIViewController *superVC = [self findViewController:self];
    NSUInteger count = superVC.childViewControllers.count;
    CGFloat x = 0;
    CGFloat w = _titlesArr.count <= 0 ? SCREEN_WIDTH : (_titlesArr.count > 4 ? SCREEN_WIDTH/4 + 20 *SCALE_WIDTH: (SCREEN_WIDTH/_titlesArr.count) + 20 *SCALE_WIDTH );
    CGFloat h = titleH;
    self.imageBackView  = [[UIImageView alloc] initWithFrame:CGRectMake(0, 5 *SCALE_WIDTH, w, titleH-10 *SCALE_WIDTH)];
    self.imageBackView.userInteractionEnabled = YES;
    [self.titleScrollView addSubview:self.imageBackView];
    self.titleScrollView.backgroundColor = [UIColor whiteColor];

    for (int i = 0; i < count; i++) {

        x = i * w;
        CGRect rect = CGRectMake(x, 0, w, h);
        UIButton *btn = [[UIButton alloc] initWithFrame:rect];
        UIViewController *vc = superVC.childViewControllers[i];
        btn.tag = i;
        [btn setTitle:vc.title forState:UIControlStateNormal];
        [btn setTitleColor:DARK_FONT_COLOR forState:UIControlStateNormal];
        btn.titleLabel.font = [UIFont systemFontOfSize:13.0];
        [btn addTarget:self action:@selector(click:) forControlEvents:UIControlEventTouchDown];
        [self.buttons addObject:btn];
        [self.titleScrollView addSubview:btn];
        if (i == 0) {
            [self click:btn];
        }
    }
    self.titleScrollView.contentSize = CGSizeMake(count *w, 0);
    self.titleScrollView.showsHorizontalScrollIndicator = NO;

}

-(void)click:(UIButton *)sender{

    [self selectTitleBtn:sender];
    NSInteger i = sender.tag;
    CGFloat x  = i *SCREEN_WIDTH;
    self.contentScrollView.contentOffset = CGPointMake(x, 0);
    [self setUpOneChildController:i];

}

-(void)selectTitleBtn:(UIButton *)btn{

    [self.selectedBtn setTitleColor:DARK_FONT_COLOR forState:UIControlStateNormal];
    self.selectedBtn.transform = CGAffineTransformIdentity;

    [btn setTitleColor:GREEN_COLOR forState:UIControlStateNormal];
    btn.transform = CGAffineTransformMakeScale(MaxScale, MaxScale);
    self.selectedBtn = btn;

    [self setupTitleCenter:btn];

}

-(void)setupTitleCenter:(UIButton *)sender {

    CGFloat offset = sender.center.x - SCREEN_WIDTH * 0.5;
    if (offset < 0) {
        offset = 0;
    }

    CGFloat maxOffset  = self.titleScrollView.contentSize.width - SCREEN_WIDTH;
    if (offset > maxOffset && maxOffset>0) {
        offset = maxOffset;
    }

    [self.titleScrollView setContentOffset:CGPointMake(offset, 0) animated:YES];

}

-(void)setUpOneChildController:(NSInteger)index{
    UIViewController *superVC = [self findViewController:self];

    CGFloat x  = index * SCREEN_WIDTH;
    UIViewController *vc  =  superVC.childViewControllers[index];
    if (vc.view.superview) {
        return;
    }
    vc.view.frame = CGRectMake(x, 0, SCREEN_WIDTH, SCREEN_HEIGHT - self.contentScrollView.frame.origin.y);
    [self.contentScrollView addSubview:vc.view];

}

#pragma mark - UIScrollView  delegate
-(void)scrollViewDidEndDecelerating:(UIScrollView *)scrollView{
    NSInteger i  = self.contentScrollView.contentOffset.x / SCREEN_WIDTH;
    [self selectTitleBtn:self.buttons[i]];
    [self setUpOneChildController:i];
}

-(void)scrollViewDidScroll:(UIScrollView *)scrollView {

    CGFloat offsetX  = scrollView.contentOffset.x;
    NSInteger leftIndex  = offsetX / SCREEN_WIDTH;
    NSInteger rightIdex  = leftIndex + 1;

    UIButton *leftButton = self.buttons[leftIndex];
    UIButton *rightButton  = nil;
    if (rightIdex < self.buttons.count) {
        rightButton  = self.buttons[rightIdex];
    }
    CGFloat scaleR  = offsetX / SCREEN_WIDTH - leftIndex;
    CGFloat scaleL  = 1 - scaleR;
    CGFloat transScale = MaxScale - 1;

    self.imageBackView.transform  = CGAffineTransformMakeTranslation((offsetX*(self.titleScrollView.contentSize.width / self.contentScrollView.contentSize.width)), 0);

    leftButton.transform = CGAffineTransformMakeScale(scaleL * transScale + 1, scaleL * transScale + 1);
    rightButton.transform = CGAffineTransformMakeScale(scaleR * transScale + 1, scaleR * transScale + 1);

}

@end

使用:在A Controller中,添加B和C两个Controller,或多个

SlidingHeadView *slidingV = [[SlidingHeadView alloc] init];
slidingV.frame = CGRectMake(0, 0, SCREEN_WIDTH, SCREEN_HEIGHT);
slidingV.titlesArr = [NSArray arrayWithObjects:@"公告", @"资讯", nil];
[self.view addSubview:slidingV];

BulletinViewController *bulletinVC = [[BulletinViewController alloc] init];
[slidingV addChildrenViewController:bulletinVC];

NewsViewController *newsVC = [[NewsViewController alloc] init];
[slidingV addChildrenViewController:newsVC];

[slidingV setSlideHeadView];

未经允许不得转载:作者:SheaYang, 转载或复制请以 超链接形式 并注明出处 技术Dog|博客
原文地址:《iOS 多个视图在同一个controller上面的滑动》 发布于2019-10-03

分享到:
赞(0)

评论 抢沙发

2 + 8 =


iOS 多个视图在同一个controller上面的滑动

长按图片转发给朋友

Vieu4.0主题
专业打造轻量级个人企业风格博客主题!专注于前端开发,全站响应式布局自适应模板。

登录

忘记密码 ?

您也可以使用第三方帐号快捷登录

Q Q 登 录
微 博 登 录
